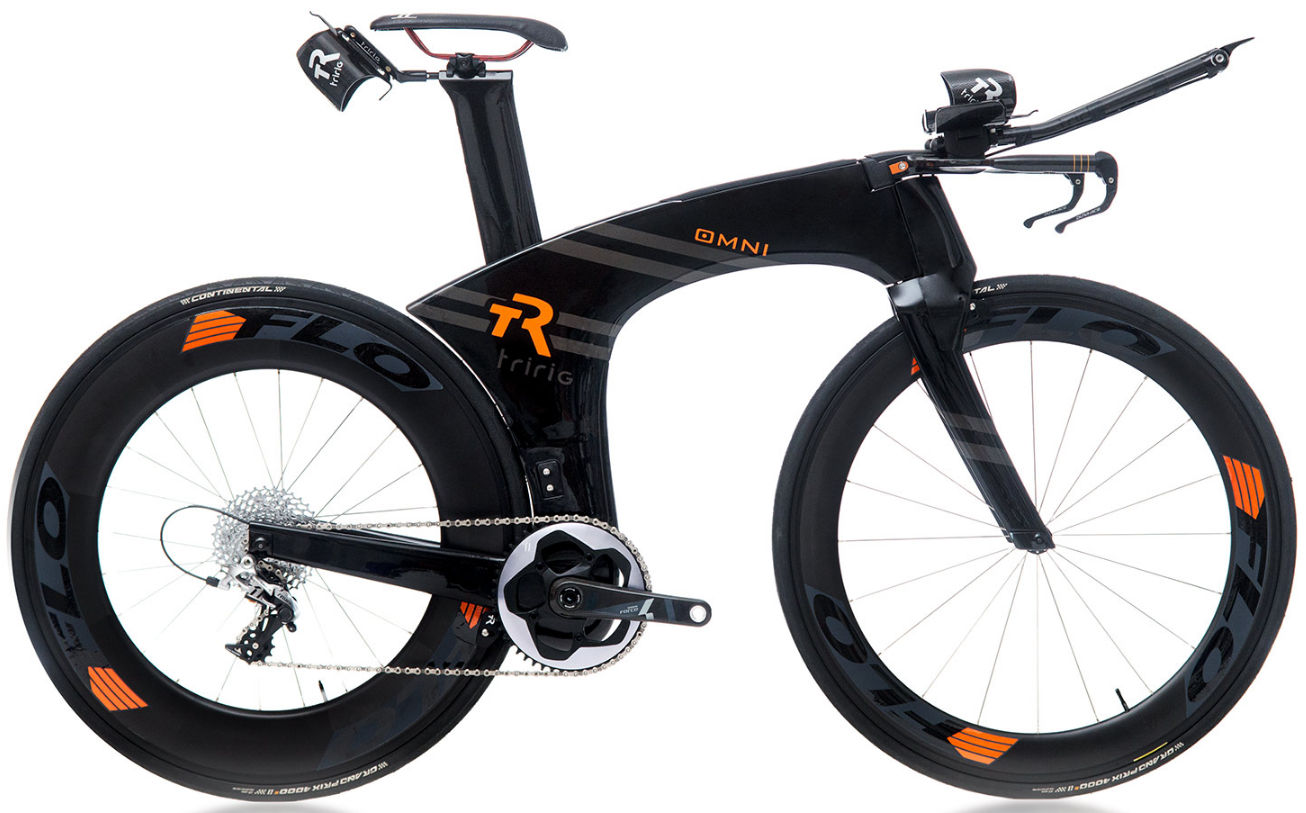

2017 Tririg Omni geometry
Full frame geometry for the 2017 Tririg Omni, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 490 | 375 | 79 | 72.5 | 755 | 68 | 560 | 400 | 48 |
| M | 525 | 405 | 79 | 72.5 | 790 | 68 | 600 | 400 | 48 |
| L | 560 | 435 | 79 | 72.5 | 825 | 68 | 640 | 400 | 48 |
All measurements in millimetres unless marked (°) for angles.
