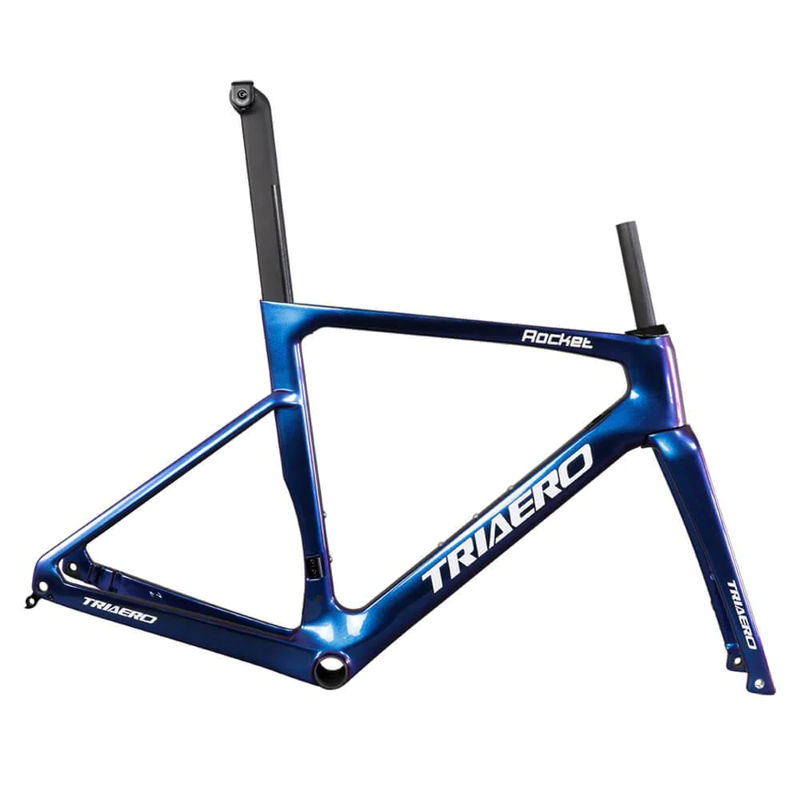

2022 Triaero A9 geometry
Full frame geometry for the 2022 Triaero A9, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 502.6 | 371.2 | 74.5 | 70.8 | 110 | 510.6 | 460 | 66 | 579.6 | 410 | 980.5 | 50 |
| 49 | 509 | 378.9 | 74.5 | 71 | 115 | 520 | 490 | 66 | 588 | 410 | 988.9 | 50 |
| 52 | 526.7 | 384 | 74 | 72 | 130 | 535 | 520 | 66 | 590 | 410 | 991 | 50 |
| 54 | 547.6 | 388.8 | 73.7 | 72.5 | 150 | 550 | 540 | 66 | 596.8 | 410 | 997.8 | 50 |
| 56 | 568.5 | 394.5 | 73.3 | 73 | 170 | 565 | 560 | 66 | 604 | 410 | 1005 | 50 |
| 58 | 588.7 | 400 | 73 | 73.3 | 190 | 580 | 580 | 66 | 612.6 | 410 | 1013.7 | 50 |
All measurements in millimetres unless marked (°) for angles.
