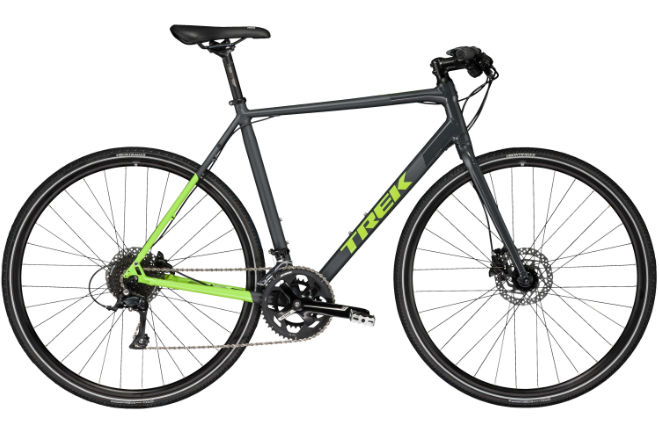

2018 Trek Zektor geometry
Full frame geometry for the 2018 Trek Zektor, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 543 | 375 | 74.5 | 72 | 123 | 526 | 500 | 778 | 65 | 437 | 1016 | 64 |
| 53 | 562 | 378 | 74 | 72 | 143 | 540 | 530 | 801 | 65 | 437 | 1025 | 64 |
| 56 | 581 | 387 | 73.5 | 72 | 163 | 560 | 560 | 824 | 65 | 437 | 1040 | 64 |
| 61 | 619 | 400 | 72.5 | 72 | 203 | 595 | 610 | 868 | 65 | 437 | 1065 | 64 |
All measurements in millimetres unless marked (°) for angles.
