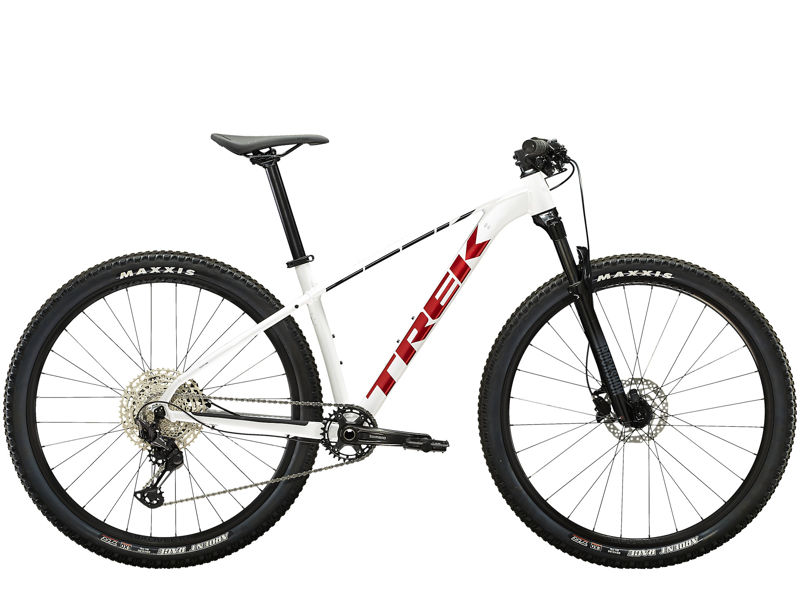

2023 Trek X-Caliber geometry
Full frame geometry for the 2023 Trek X-Caliber, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 565 | 376 | 73.5 | 69.3 | 90 | 544 | 698 | 58 | 425 | 1036 | 42 | 88 |
| S | 574 | 385 | 73.5 | 69.3 | 90 | 555 | 724 | 48 | 425 | 1053 | 42 | 88 |
| M | 598 | 418 | 71.9 | 69.5 | 90 | 601 | 748 | 58 | 438 | 1109 | 42 | 94 |
| ML | 598 | 434 | 71.9 | 69.5 | 90 | 617 | 757 | 58 | 438 | 1125 | 42 | 94 |
| L | 608 | 451 | 71.9 | 69.5 | 100 | 637 | 757 | 58 | 438 | 1145 | 42 | 94 |
| XL | 627 | 466 | 71.9 | 69.5 | 120 | 658 | 768 | 58 | 438 | 1167 | 42 | 94 |
| XXL | 627 | 480 | 71.9 | 65 | 120 | 672 | 804 | 58 | 438 | 1181 | 42 | 94 |
All measurements in millimetres unless marked (°) for angles.
