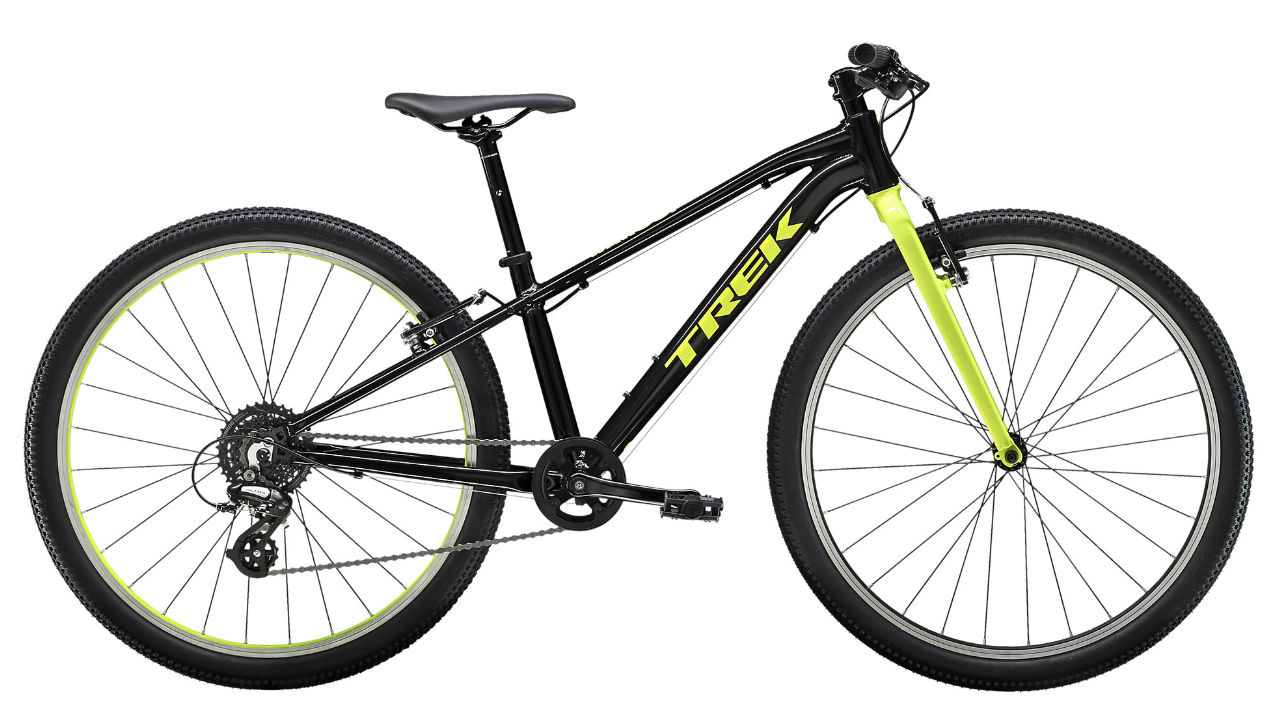

2019 Trek Wahoo 26 geometry
Full frame geometry for the 2019 Trek Wahoo 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kids 26 | 499 | 377 | 74.5 | 70 | 100 | 515 | 320 | 650 | 45 | 591 | 430 | 1017 | 45 | 70 |
All measurements in millimetres unless marked (°) for angles.
