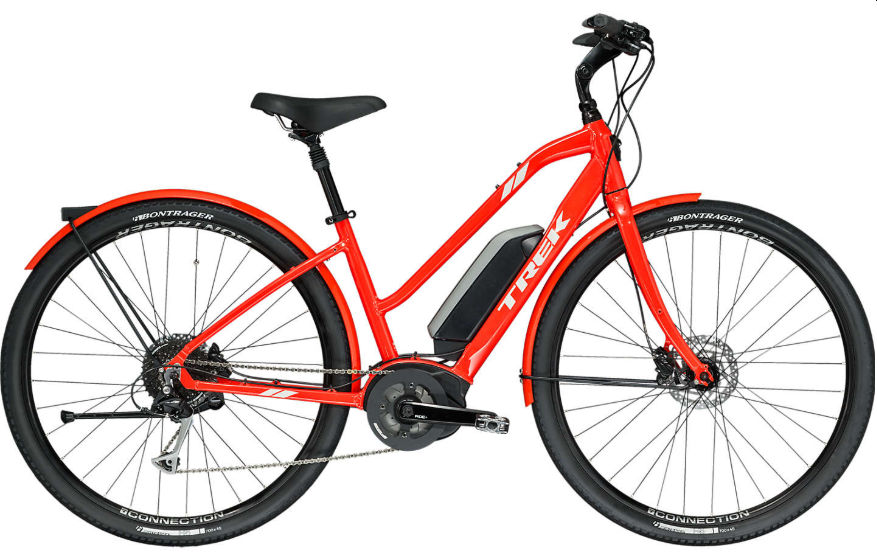

2019 Trek Verve + Lowstep geometry
Full frame geometry for the 2019 Trek Verve + Lowstep, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 584 | 375 | 71 | 147 | 565 | 343 | 695 | 70 | 475 | 1080 | 55 | 66 |
| S | 587 | 385 | 71.5 | 147 | 587 | 420 | 730 | 70 | 475 | 1086 | 55 | 63 |
| M | 605 | 390 | 71.5 | 167 | 599 | 495 | 780 | 70 | 475 | 1097 | 55 | 63 |
All measurements in millimetres unless marked (°) for angles.
