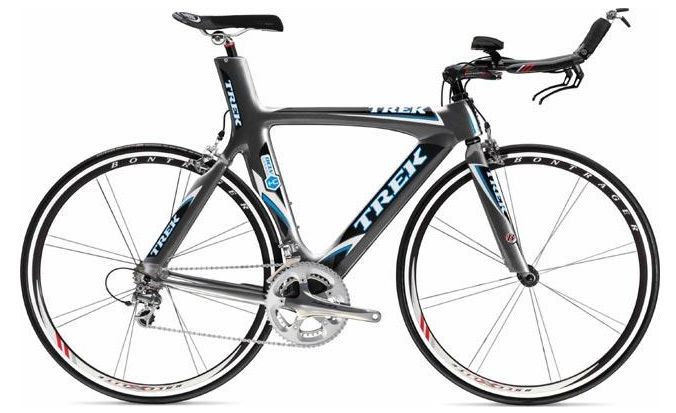

2006 Trek TTT geometry
Full frame geometry for the 2006 Trek TTT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/52 | 483 | 372 | 73.6 | 72 | 83 | 514 | 595 | 768 | 65 | 551 | 405 | 949 | 40 | 67 |
| M/56 | 508 | 394 | 73.8 | 73.3 | 102 | 542 | 655 | 768 | 68 | 569 | 405 | 967 | 40 | 67 |
| L/60 | 520 | 426 | 73.7 | 73.9 | 113 | 578 | 705 | 768 | 68 | 599 | 405 | 997 | 40 | 67 |
All measurements in millimetres unless marked (°) for angles.
