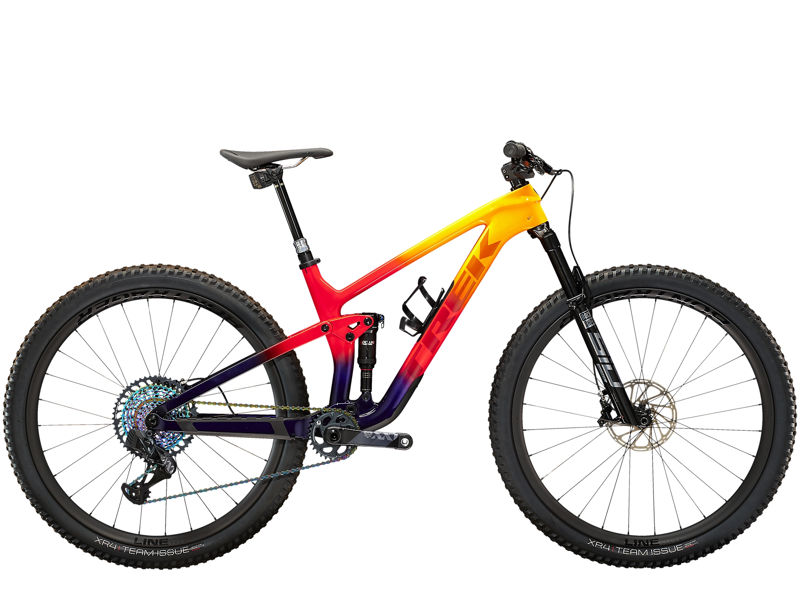

2022 Trek Top Fuel geometry
Full frame geometry for the 2022 Trek Top Fuel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 595 | 450 | 76 | 66 | 100 | 598 | 420 | 735 | 3.6 | 435 | 1181 | 4.4 | 11.8 |
| S | 595 | 420 | 76 | 66 | 100 | 568 | 395 | 719 | 3.6 | 435 | 1151 | 4.4 | 11.8 |
| ML | 600 | 465 | 76 | 66 | 105 | 615 | 435 | 740 | 3.6 | 435 | 1198 | 4.4 | 11.8 |
| L | 605 | 480 | 76 | 66 | 111 | 631 | 450 | 745 | 3.6 | 435 | 1215 | 4.4 | 11.8 |
| XL | 618 | 500 | 76 | 66 | 125 | 654 | 500 | 755 | 3.6 | 435 | 1241 | 4.4 | 11.8 |
All measurements in millimetres unless marked (°) for angles.
