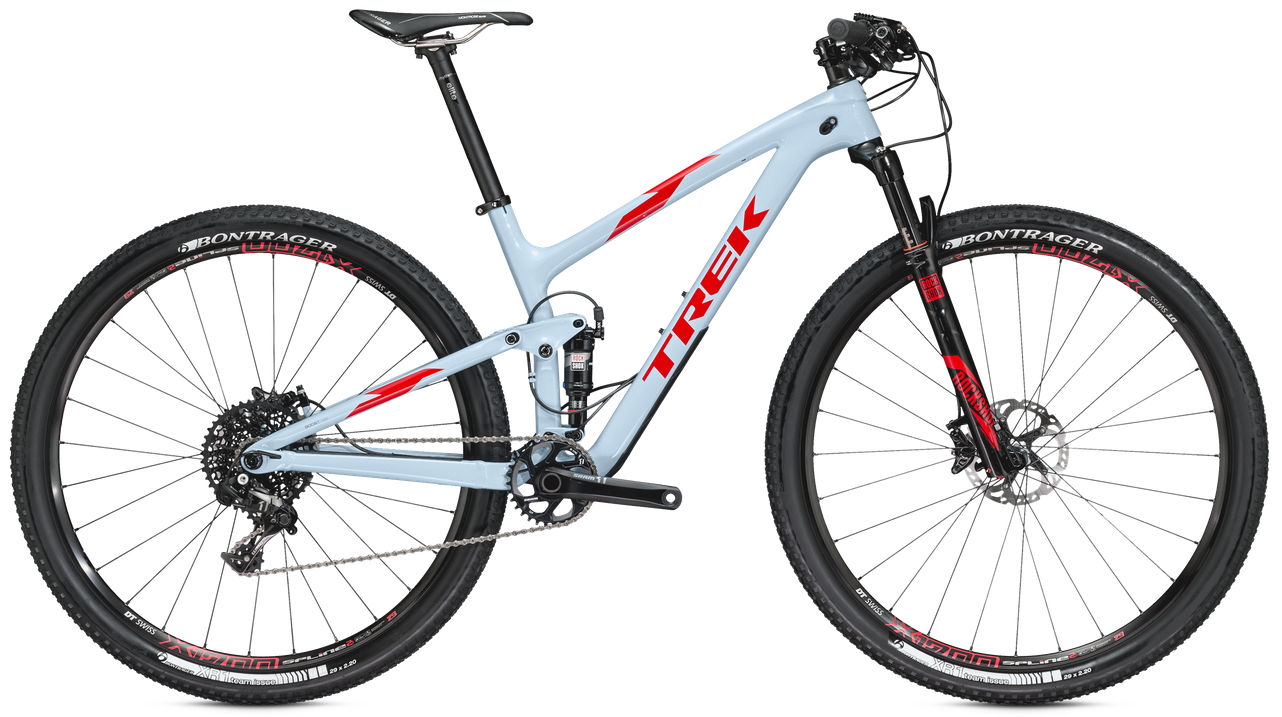

2016 Trek Top Fuel Carbon MKI geometry

Name: 2016 Trek Top Fuel Carbon MKI
Brand: Trek

Full frame geometry for the 2016 Trek Top Fuel Carbon MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
15.5-High	554	401	74.5	70.9	100	558	394	766	14	639	424	1063	47	79
15.5-Low	561	392	73.5	69.9	100	558	394	757	25	639	426	1064	47	80
16.5-High	570	436	74.9	70.9	90	592	419	753	28	678	432	1109	51	79
17.5-High	570	452	74.9	70.9	90	609	445	777	28	694	432	1125	51	79
16.5-Low	577	427	74	70	90	593	419	750	39	681	433	1111	51	80
17.5-Low	577	443	74	70	90	609	445	741	39	697	433	1127	51	80
18.5-High	580	466	74.9	70.9	100	625	470	801	27	712	432	1143	51	79
18.5-Low	587	457	74	70	100	625	470	745	39	714	433	1144	51	80
20.5-High	605	481	74.9	70.9	120	646	521	825	27	734	432	1165	51	79
20.5-Low	606	464	74	70	120	646	521	751	39	733	433	1163	51	80

All measurements in millimetres unless marked (°) for angles.
