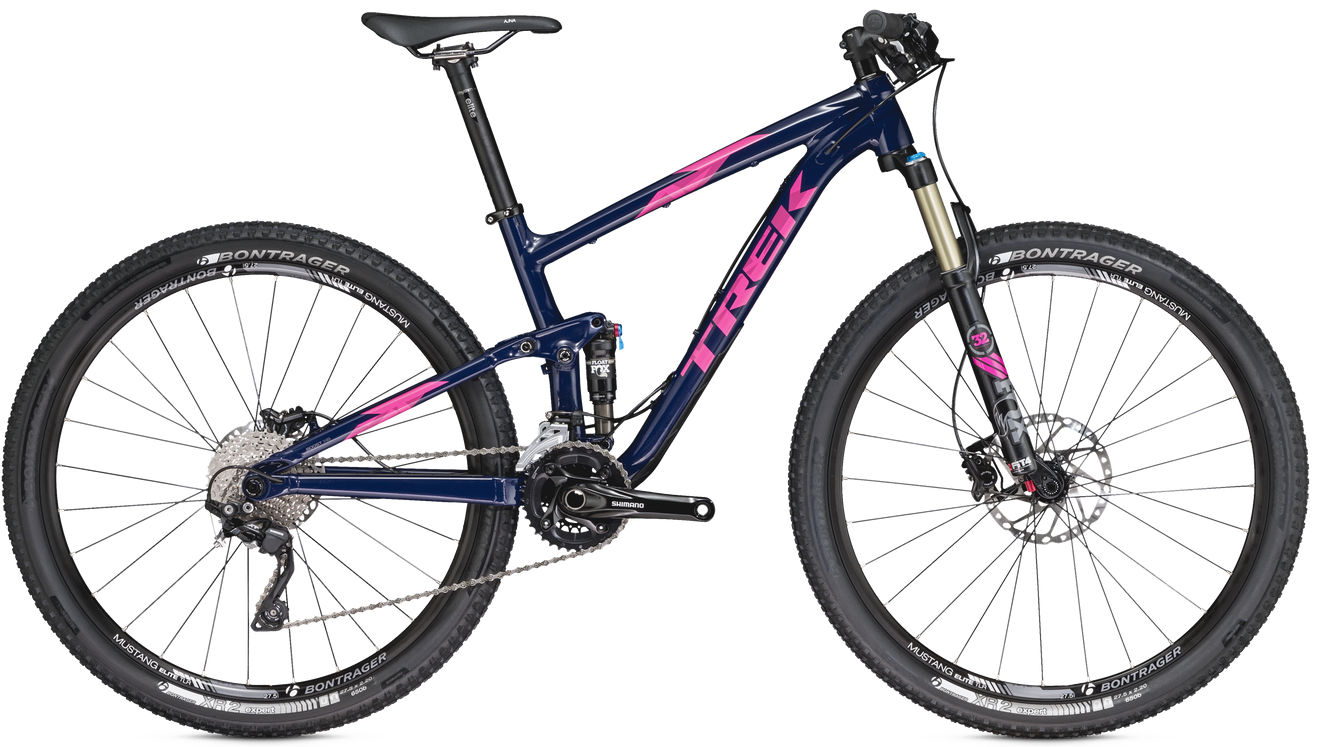

2016 Trek Top Fuel Alloy MKI Womens geometry
Full frame geometry for the 2016 Trek Top Fuel Alloy MKI Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5-High | 554 | 401 | 74.5 | 70.9 | 100 | 558 | 394 | 766 | 14 | 639 | 424 | 1063 | 47 | 79 |
| 15.5-Low | 561 | 392 | 73.5 | 69.9 | 100 | 558 | 394 | 757 | 25 | 639 | 426 | 1064 | 47 | 80 |
| 16.5-High | 570 | 436 | 74.9 | 70.9 | 90 | 592 | 419 | 753 | 28 | 678 | 432 | 1109 | 51 | 79 |
| 17.5-High | 570 | 452 | 74.9 | 70.9 | 90 | 609 | 445 | 777 | 28 | 694 | 432 | 1125 | 51 | 79 |
| 16.5-Low | 577 | 427 | 74 | 70 | 90 | 593 | 419 | 750 | 39 | 681 | 433 | 1111 | 51 | 80 |
| 17.5-Low | 577 | 443 | 74 | 70 | 90 | 609 | 445 | 741 | 39 | 697 | 433 | 1127 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
