2022 Trek · DH

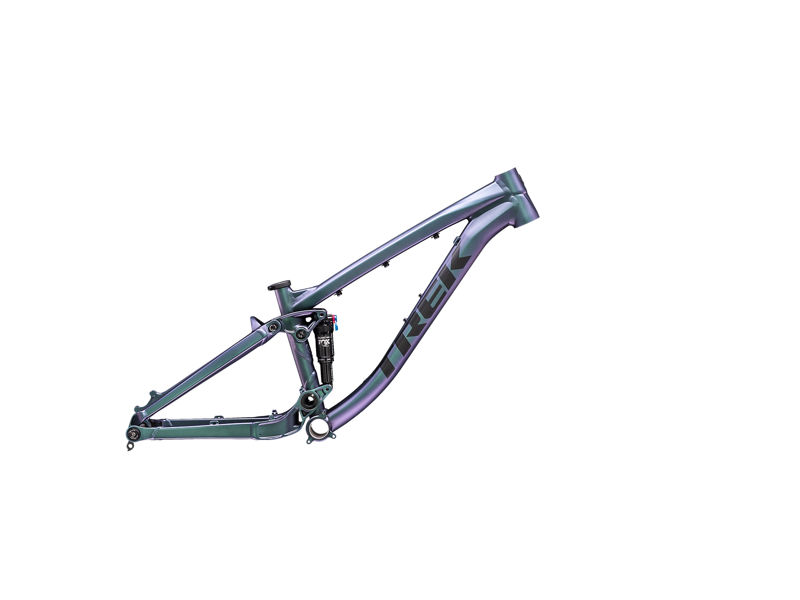

2022 Trek Ticket S geometry
Full frame geometry for the 2022 Trek Ticket S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 547 | 426 | 75 | 68.5 | 123 | 565 | 331 | 375 | 3 | 400 | 1085 | 40 | 88 |
All measurements in millimetres unless marked (°) for angles.
