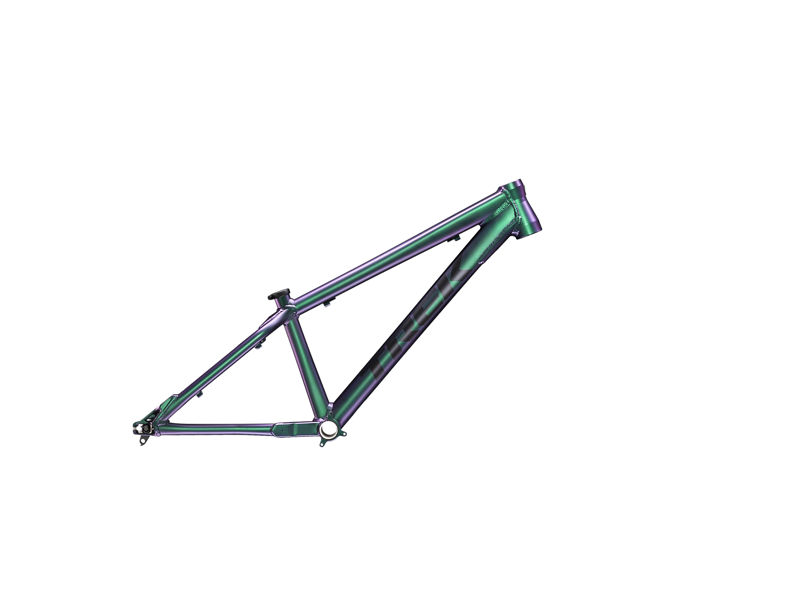

2022 Trek Ticket DJ geometry
Full frame geometry for the 2022 Trek Ticket DJ, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 543 | 414 | 71 | 70 | 120 | 601 | 330 | 691 | 100 | 400 | 1050 | 40 | 78 |
All measurements in millimetres unless marked (°) for angles.
