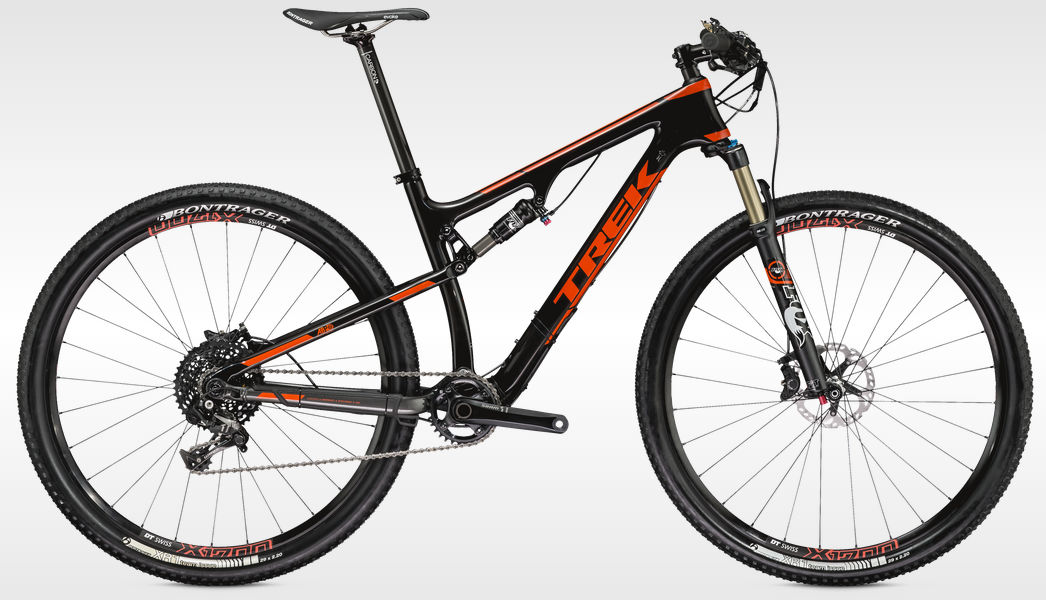

2015 Trek Superfly FS Carbon geometry
Full frame geometry for the 2015 Trek Superfly FS Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 593 | 392 | 73.8 | 70 | 105 | 556 | 394 | 780 | 39 | 650 | 452 | 1099 | 51 | 80 |
| 17.5 | 603 | 421 | 73.8 | 70 | 115 | 588 | 445 | 771 | 39 | 682 | 452 | 1131 | 51 | 80 |
| 19 | 612 | 436 | 73.8 | 70 | 125 | 606 | 483 | 763 | 39 | 700 | 452 | 1149 | 51 | 80 |
| 21 | 621 | 454 | 73.8 | 70 | 135 | 628 | 533 | 777 | 39 | 722 | 452 | 1171 | 51 | 80 |
| 23 | 631 | 470 | 73.8 | 70 | 145 | 648 | 584 | 790 | 39 | 741 | 452 | 1190 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
