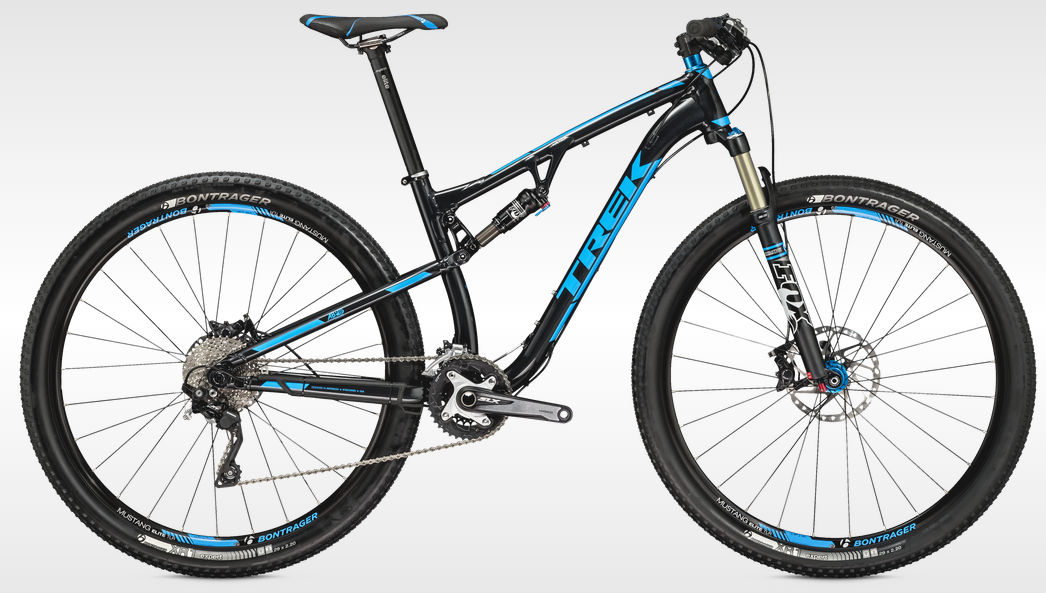

2015 Trek Superfly FS Aluminium geometry
Full frame geometry for the 2015 Trek Superfly FS Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 593 | 392 | 70 | 70 | 105 | 558 | 394 | 789 | 39 | 650 | 452 | 1099 | 51 | 80 |
| 17.5 | 603 | 421 | 70 | 70 | 115 | 589 | 419 | 784 | 39 | 682 | 452 | 1131 | 51 | 80 |
| 18.5 | 603 | 433 | 70 | 70 | 115 | 601 | 445 | 778 | 39 | 694 | 452 | 1143 | 51 | 80 |
| 19.5 | 603 | 444 | 70 | 70 | 115 | 612 | 470 | 772 | 39 | 705 | 452 | 1154 | 51 | 80 |
| 21.5 | 617 | 464 | 70 | 70 | 130 | 637 | 521 | 764 | 39 | 730 | 452 | 1179 | 51 | 80 |
| 23 | 626 | 474 | 70 | 70 | 140 | 649 | 559 | 785 | 39 | 743 | 452 | 1192 | 51 | 80 |
All measurements in millimetres unless marked (°) for angles.
