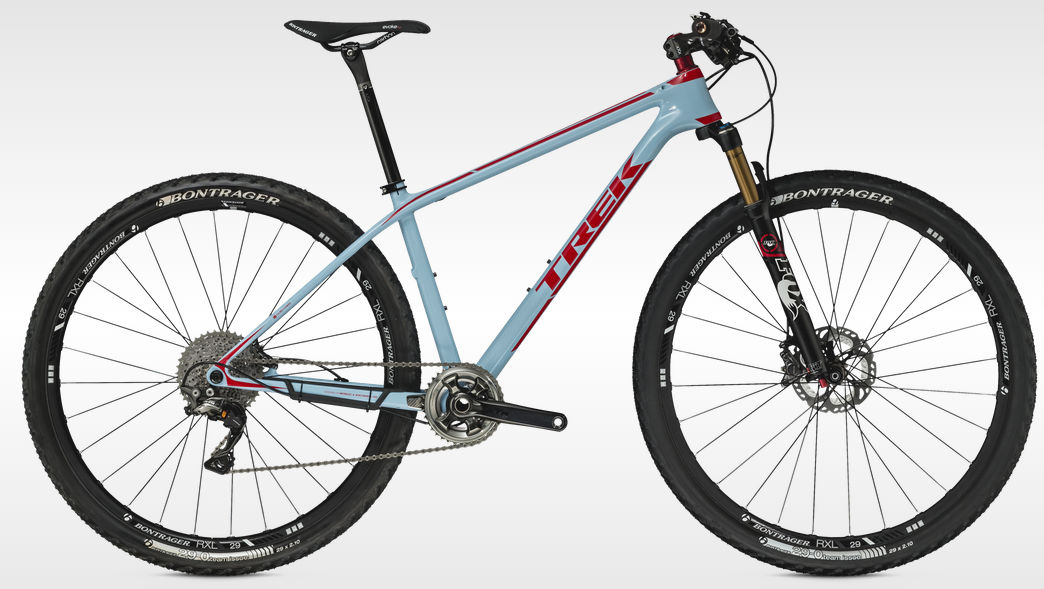

2015 Trek Superfly Carbon geometry
Full frame geometry for the 2015 Trek Superfly Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 602 | 386 | 73 | 69.3 | 103 | 570 | 368 | 748 | 53 | 650 | 445 | 1090 | 51 | 85 |
| 17.5 | 602 | 412 | 72.5 | 69.3 | 103 | 602 | 416 | 769 | 53 | 676 | 445 | 1116 | 51 | 85 |
| 19 | 603 | 426 | 72 | 69.6 | 103 | 622 | 457 | 789 | 53 | 687 | 445 | 1127 | 51 | 83 |
| 21 | 617 | 442 | 72 | 69.6 | 118 | 643 | 508 | 822 | 53 | 708 | 445 | 1148 | 51 | 83 |
| 23 | 617 | 462 | 72 | 69.6 | 118 | 663 | 545 | 844 | 53 | 729 | 445 | 1169 | 51 | 83 |
All measurements in millimetres unless marked (°) for angles.
