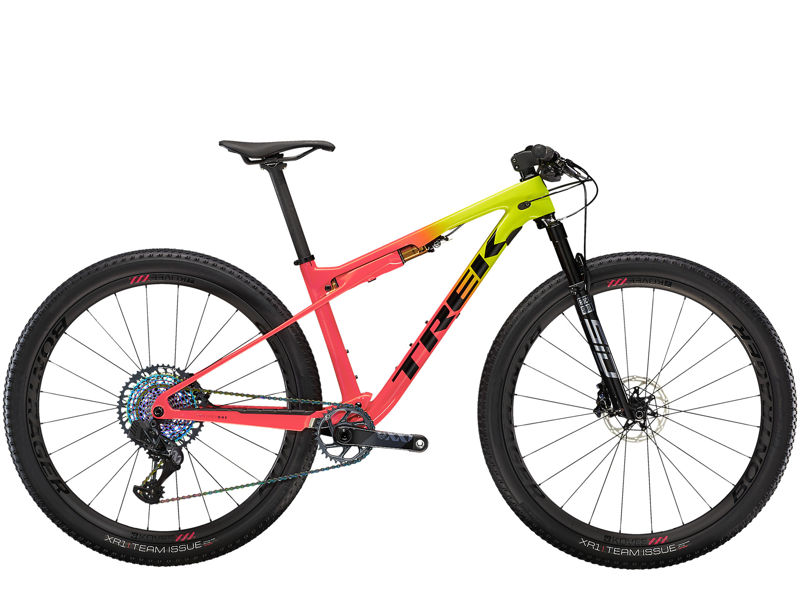

2022 Trek Supercaliber geometry
Full frame geometry for the 2022 Trek Supercaliber, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 594 | 455 | 74 | 69 | 90 | 625 | 470 | 787 | 53 | 430 | 1136 | 44 | 96 |
| M | 594 | 425 | 74 | 69 | 90 | 595 | 419 | 760 | 53 | 430 | 1106 | 44 | 96 |
| ML | 594 | 440 | 74 | 69 | 90 | 610 | 445 | 760 | 53 | 430 | 1121 | 44 | 96 |
| S | 594 | 395 | 74 | 69 | 90 | 565 | 394 | 750 | 53 | 430 | 1079 | 44 | 96 |
| XL | 608 | 485 | 74 | 69 | 105 | 659 | 508 | 787 | 53 | 430 | 1172 | 44 | 96 |
All measurements in millimetres unless marked (°) for angles.
