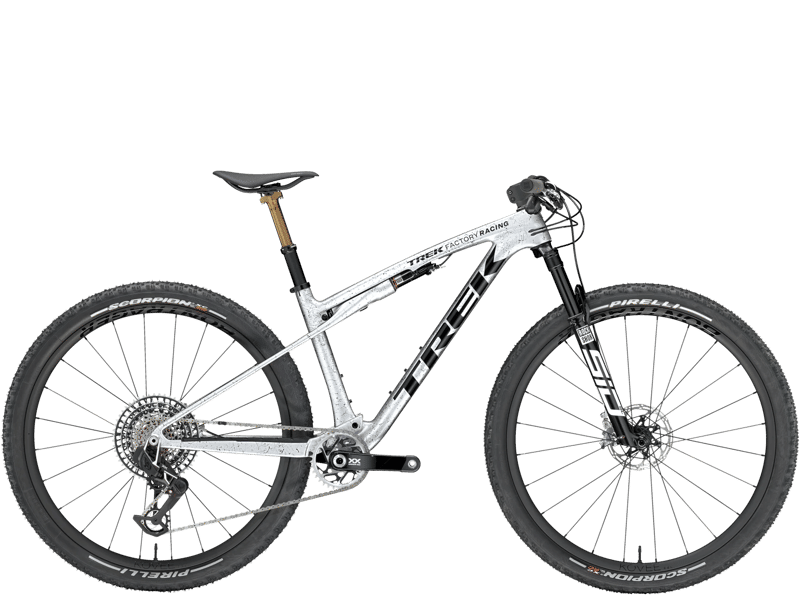

2023 Trek Supercaliber Gen 2 geometry
Full frame geometry for the 2023 Trek Supercaliber Gen 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 590 | 435 | 71 | 67.5 | 90 | 592 | 420 | 772 | 46 | 435 | 1138 | 43 | 109 |
| S | 590 | 410 | 70.5 | 67.5 | 90 | 571 | 395 | 760 | 46 | 435 | 1113 | 43 | 109 |
| L | 599 | 465 | 71.5 | 67.5 | 100 | 622 | 460 | 772 | 46 | 435 | 1172 | 43 | 109 |
| XL | 622 | 500 | 71.5 | 67.5 | 125 | 663 | 525 | 772 | 46 | 435 | 1217 | 43 | 109 |
All measurements in millimetres unless marked (°) for angles.
