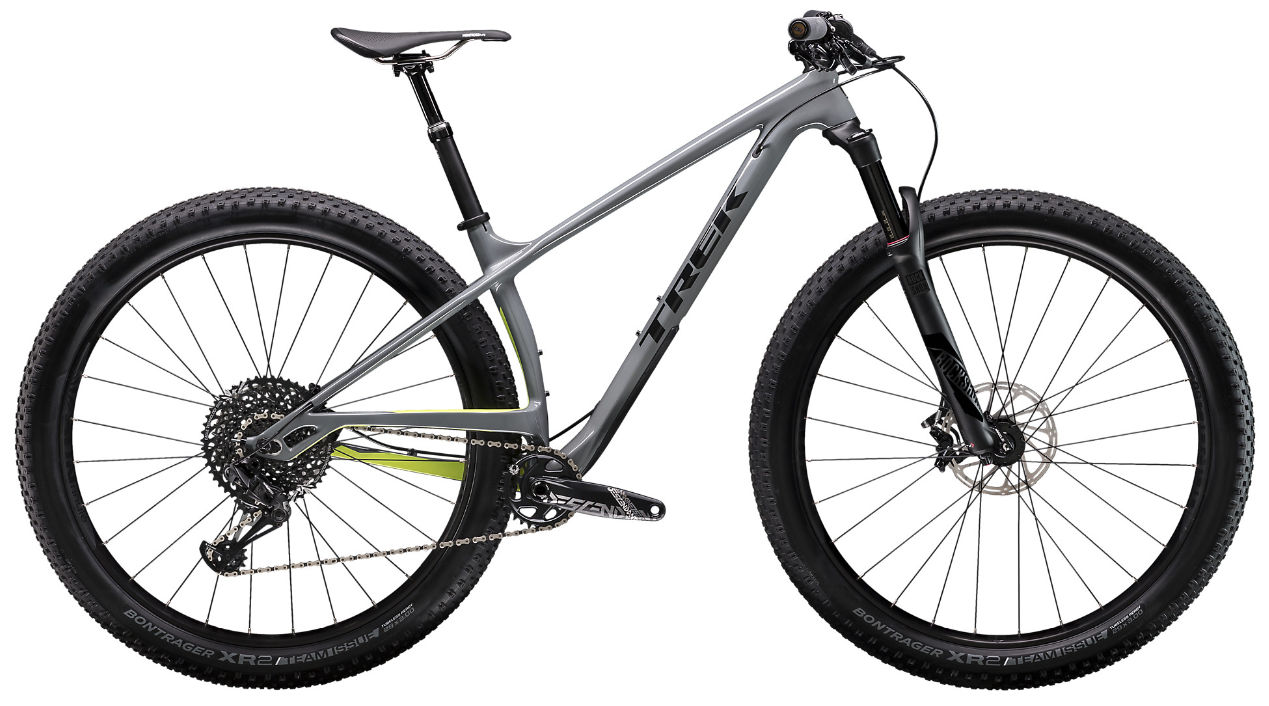

2019 Trek Stache Carbon MKII geometry
Full frame geometry for the 2019 Trek Stache Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15.5 | 630 | 393 | 68.4 | 90 | 580 | 394 | 778 | 72 | 675 | 420 | 1085 | 51 | 104 |
| M/17.5 | 635 | 415 | 67.8 | 90 | 618 | 419 | 760 | 67 | 706 | 420 | 1117 | 51 | 102 |
| L/19.5 | 645 | 444 | 67.8 | 100 | 650 | 470 | 793 | 68 | 738 | 420 | 1149 | 51 | 102 |
| XL/21.5 | 654 | 463 | 67.8 | 110 | 672 | 521 | 793 | 68 | 761 | 420 | 1172 | 51 | 102 |
All measurements in millimetres unless marked (°) for angles.
