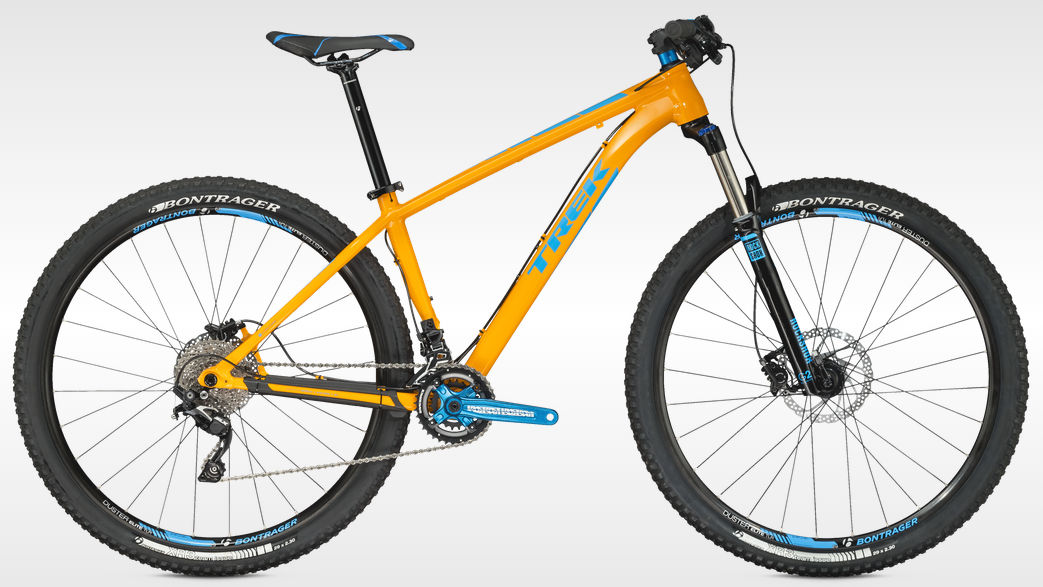

2015 Trek Stache Alloy MKI geometry
Full frame geometry for the 2015 Trek Stache Alloy MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 610 | 388 | 73 | 68.3 | 103 | 568 | 368 | 760 | 0 | 657 | 445 | 1102 | 51 | 92 |
| 17.5 | 610 | 414 | 72.5 | 68.3 | 103 | 600 | 419 | 777 | 0 | 683 | 445 | 1128 | 51 | 92 |
| 19 | 611 | 427 | 72 | 68.6 | 103 | 620 | 457 | 794 | 0 | 694 | 445 | 1139 | 51 | 90 |
| 21 | 625 | 443 | 72 | 68.6 | 118 | 640 | 508 | 824 | 0 | 716 | 445 | 1161 | 51 | 90 |
| 23 | 625 | 464 | 72 | 68.6 | 118 | 661 | 545 | 844 | 0 | 736 | 445 | 1181 | 51 | 90 |
All measurements in millimetres unless marked (°) for angles.
