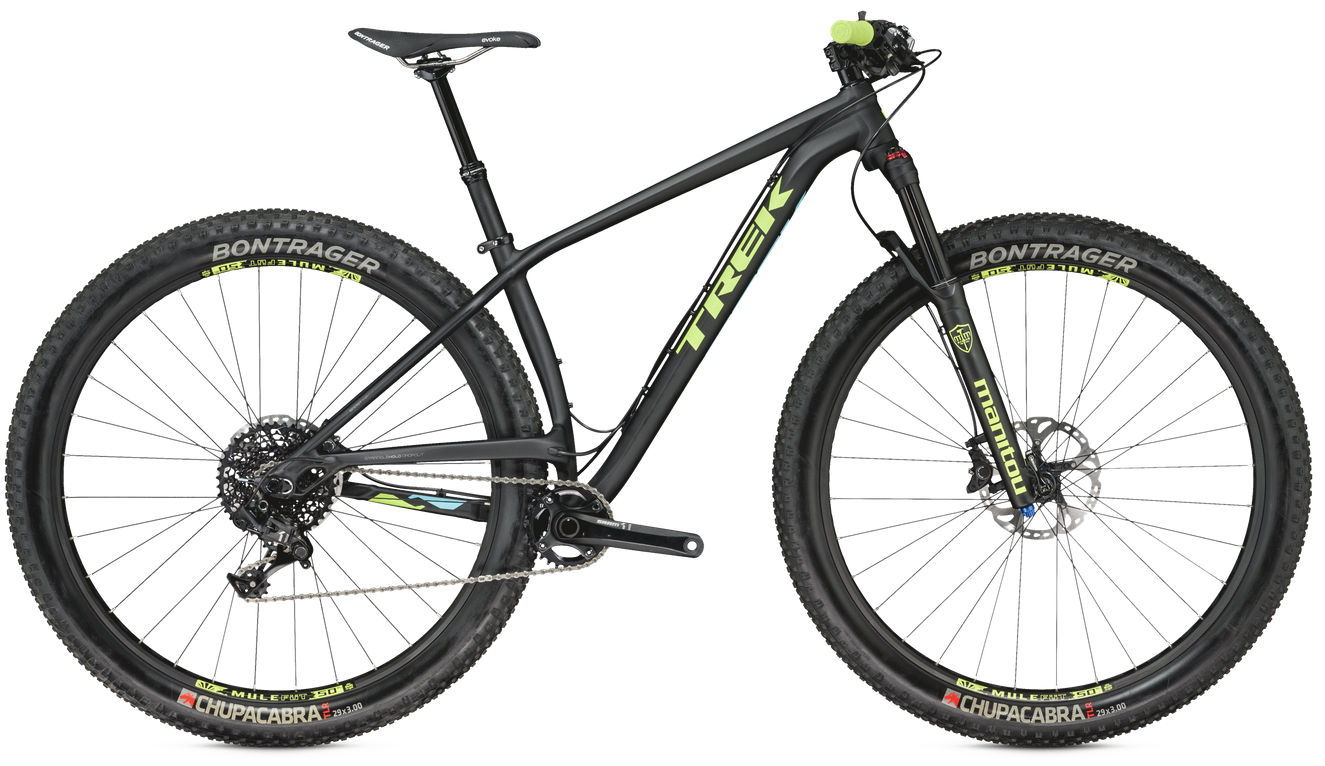

2015 Trek Stache 29+ geometry
Full frame geometry for the 2015 Trek Stache 29+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 621 | 379 | 68.9 | 68.4 | 90 | 563 | 394 | 798 | 61 | 420 | 1071 | 51 | 100 |
| 16.5 | 621 | 407 | 68.9 | 68.4 | 90 | 591 | 419 | 809 | 61 | 420 | 1099 | 51 | 100 |
| 17.5 | 630 | 421 | 68.9 | 68.4 | 100 | 609 | 445 | 820 | 61 | 420 | 1117 | 51 | 100 |
| 18.5 | 630 | 436 | 68.9 | 68.4 | 100 | 624 | 470 | 808 | 61 | 420 | 1132 | 51 | 100 |
| 20.5 | 640 | 456 | 68.9 | 68.4 | 110 | 646 | 521 | 808 | 61 | 420 | 1155 | 51 | 100 |
All measurements in millimetres unless marked (°) for angles.
