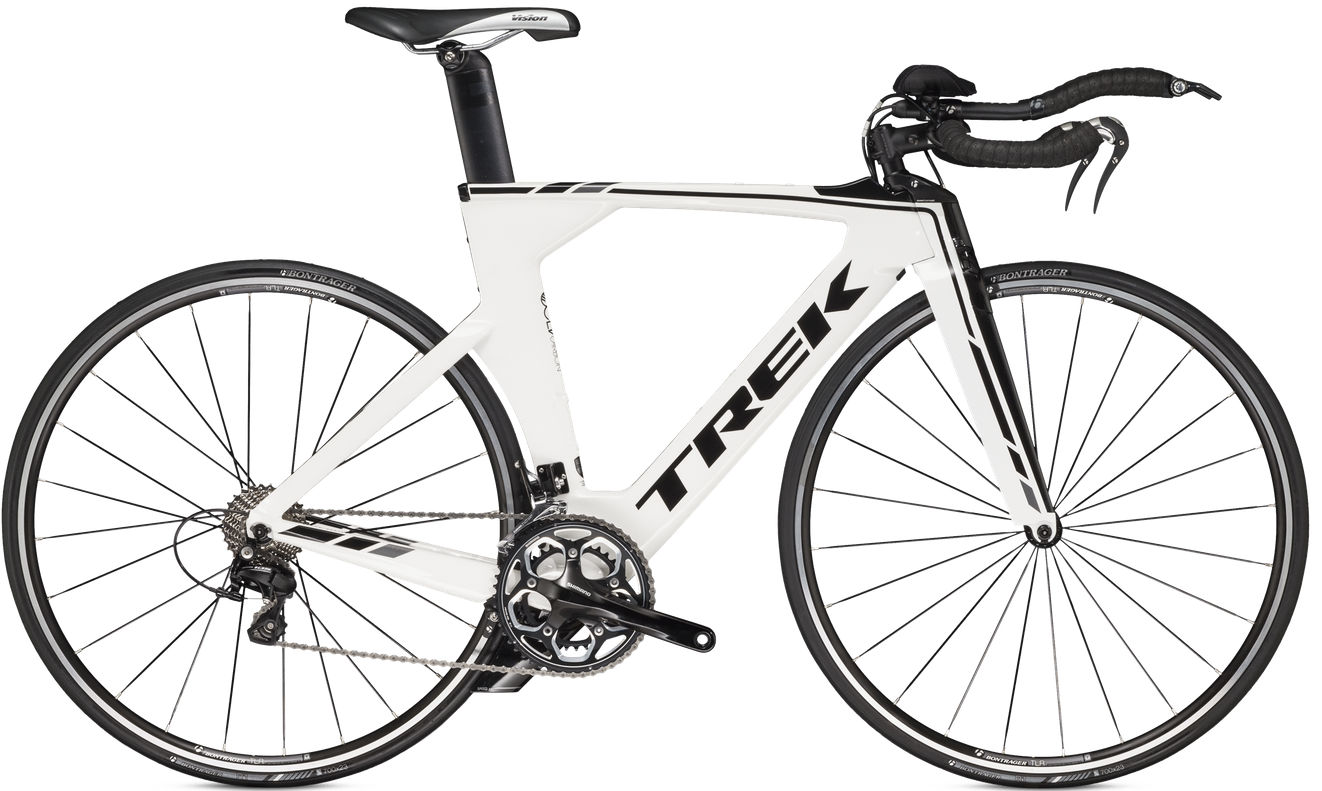

2014 Trek Speed Concept MKII 7.0 geometry
Full frame geometry for the 2014 Trek Speed Concept MKII 7.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 517 | 382 | 78 | 72.2 | 65 | 495 | 503 | 750 | 80 | 400 | 961 | 45 | 61 |
| M | 542 | 400 | 78 | 72.5 | 90 | 518 | 529 | 775 | 80 | 400 | 985 | 45 | 60 |
| L | 566 | 418 | 78 | 72.5 | 115 | 541 | 553 | 799 | 80 | 400 | 1010 | 45 | 60 |
| XL | 590 | 437 | 78 | 72.5 | 140 | 565 | 578 | 823 | 80 | 400 | 1037 | 45 | 60 |
All measurements in millimetres unless marked (°) for angles.
