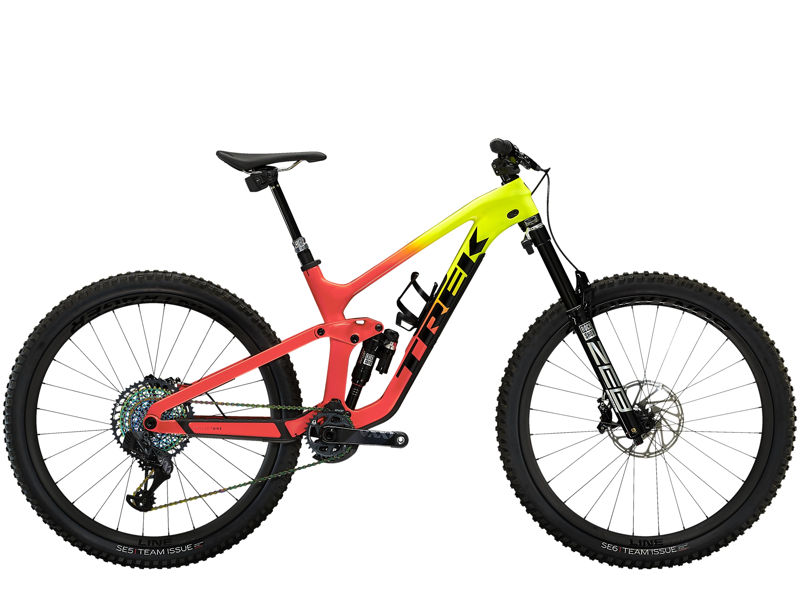

2022 Trek Slash geometry
Full frame geometry for the 2022 Trek Slash, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 425 | 75.6 | 64.1 | 100 | 585 | 395 | 705 | 29 | 437 | 1197 | 43 | 134 |
| M | 622 | 450 | 75.6 | 64.1 | 100 | 610 | 420 | 743 | 29 | 437 | 1222 | 43 | 134 |
| ML | 626 | 469 | 75.6 | 64.1 | 105 | 629 | 435 | 743 | 29 | 437 | 1243 | 43 | 134 |
| L Low | 635 | 486 | 75.6 | 64.1 | 115 | 649 | 450 | 753 | 29 | 437 | 1264 | 43 | 134 |
| XL | 658 | 516 | 75.6 | 64.1 | 140 | 684 | 500 | 773 | 29 | 437 | 1305 | 43 | 134 |
All measurements in millimetres unless marked (°) for angles.
