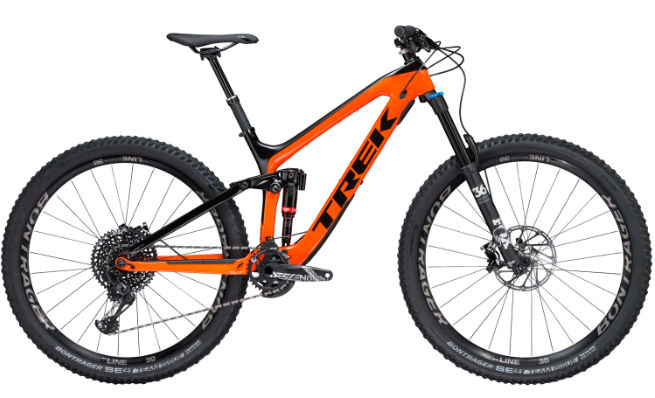

2018 Trek Slash Carbon MKII geometry
Full frame geometry for the 2018 Trek Slash Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M-High | 608 | 431 | 74.1 | 65.6 | 100 | 604 | 419 | 759 | 21 | 754 | 433 | 1186 | 51 | 114 |
| S-High | 608 | 416 | 74.1 | 65.6 | 100 | 589 | 394 | 757 | 21 | 739 | 433 | 1171 | 51 | 114 |
| M-Low | 612 | 425 | 73.6 | 65.1 | 100 | 606 | 419 | 753 | 28 | 753 | 435 | 1187 | 51 | 117 |
| S-Low | 612 | 410 | 73.6 | 65.1 | 100 | 591 | 394 | 751 | 28 | 738 | 435 | 1172 | 51 | 117 |
| L-High | 618 | 459 | 74.1 | 65.6 | 110 | 635 | 470 | 770 | 21 | 787 | 433 | 1219 | 51 | 114 |
| L-Low | 622 | 453 | 73.6 | 65.1 | 110 | 637 | 470 | 764 | 28 | 785 | 435 | 1219 | 51 | 117 |
| XL-High | 631 | 481 | 74.1 | 65.6 | 125 | 661 | 521 | 781 | 21 | 815 | 433 | 1247 | 51 | 114 |
| XL-Low | 635 | 475 | 73.6 | 65.1 | 125 | 663 | 521 | 775 | 28 | 814 | 435 | 1248 | 51 | 117 |
All measurements in millimetres unless marked (°) for angles.
