2015 Trek Slash Alloy MKI geometry

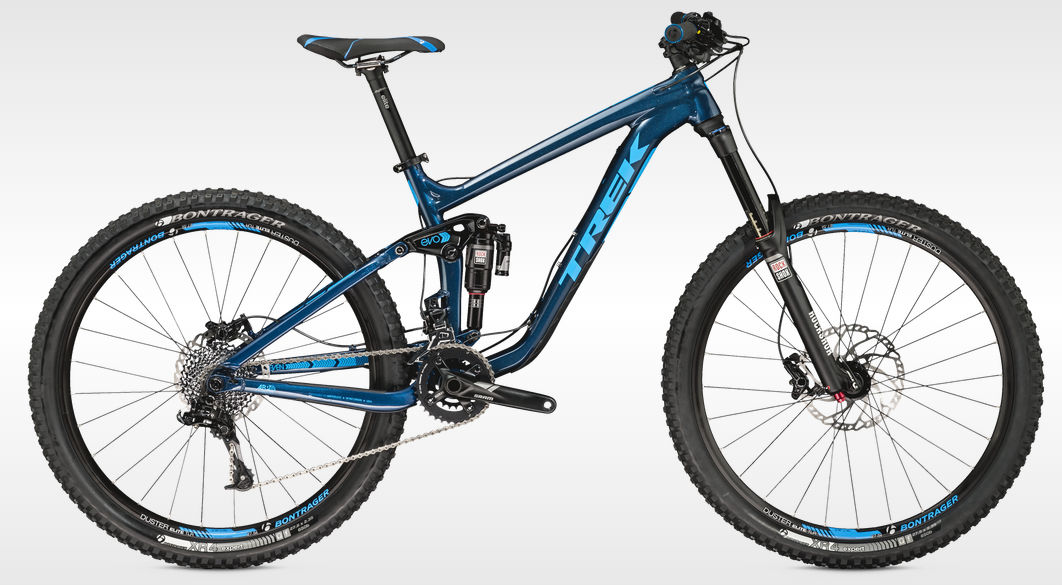

Name: 2015 Trek Slash Alloy MKI
Brand: Trek

Full frame geometry for the 2015 Trek Slash Alloy MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
15.5-High	576	404	67.2	65.7	100	555	394	802	2	714	433	1147	44	117
17.5-High	576	434	67.1	65.6	100	585	419	784	2	744	433	1177	44	117
18.5-High	576	447	67.1	65.6	100	598	445	769	2	757	433	1190	44	117
15.5-Low	581	397	66.5	65	100	557	394	795	6	714	435	1149	44	117
17.5-Low	581	427	66.5	65	100	587	419	777	6	744	435	1179	44	117
18.5-Low	581	440	66.5	65	100	600	445	762	6	757	435	1192	44	117
19.5-High	585	456	67.1	65.6	110	611	470	764	3	771	433	1204	44	117
19.5-Low	590	450	66.5	65	110	614	470	756	6	770	435	1205	44	117
21.5-High	594	480	67.1	65.6	120	645	521	753	3	799	433	1232	44	117
21.5-Low	599	474	66.5	65	120	642	521	745	6	799	435	1234	44	117

All measurements in millimetres unless marked (°) for angles.
