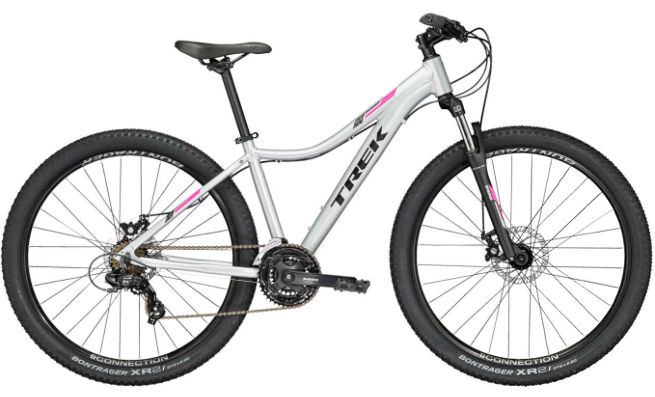

2018 Trek Skye Womens geometry
Full frame geometry for the 2018 Trek Skye Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 565 | 352 | 73 | 69 | 100 | 525 | 343 | 660 | 48 | 438 | 1033 | 89 |
| 15.5 | 585 | 381 | 73 | 69.3 | 100 | 560 | 394 | 680 | 48 | 438 | 1066 | 87 |
| 17 | 598 | 407 | 73 | 69 | 100 | 590 | 406 | 669 | 0 | 445 | 1113 | 85 |
| 18.5 | 598 | 429 | 73 | 69 | 100 | 612 | 445 | 685 | 0 | 445 | 1135 | 85 |
All measurements in millimetres unless marked (°) for angles.
