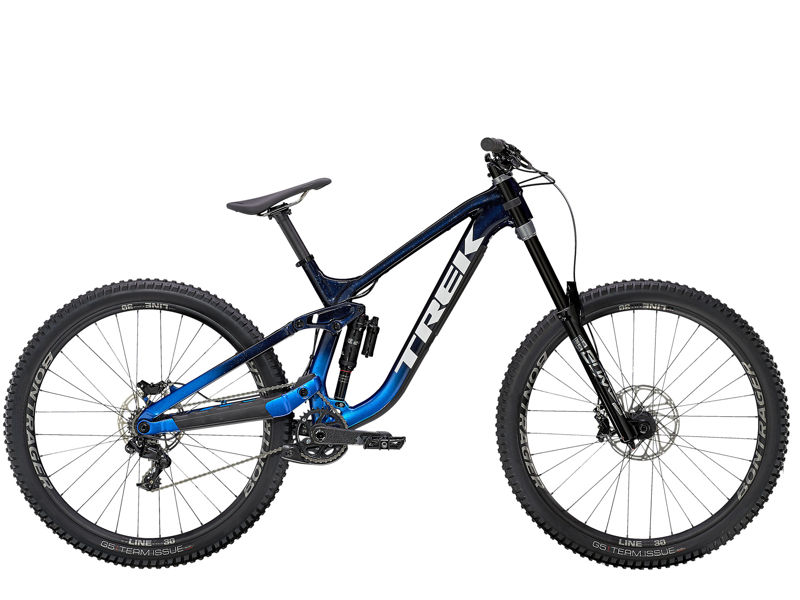

2022 Trek Session geometry
Full frame geometry for the 2022 Trek Session, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | 639 | 440 | 61 | 63 | 117 | 587 | 425 | 747 | 21 | 439 | 1246 | 46 | 136 |
| R2 | 639 | 465 | 61 | 63 | 117 | 618 | 425 | 751 | 21 | 445 | 1277 | 46 | 136 |
| R3 | 639 | 493 | 61 | 63 | 117 | 653 | 425 | 749 | 21 | 452 | 1312 | 46 | 136 |
All measurements in millimetres unless marked (°) for angles.
