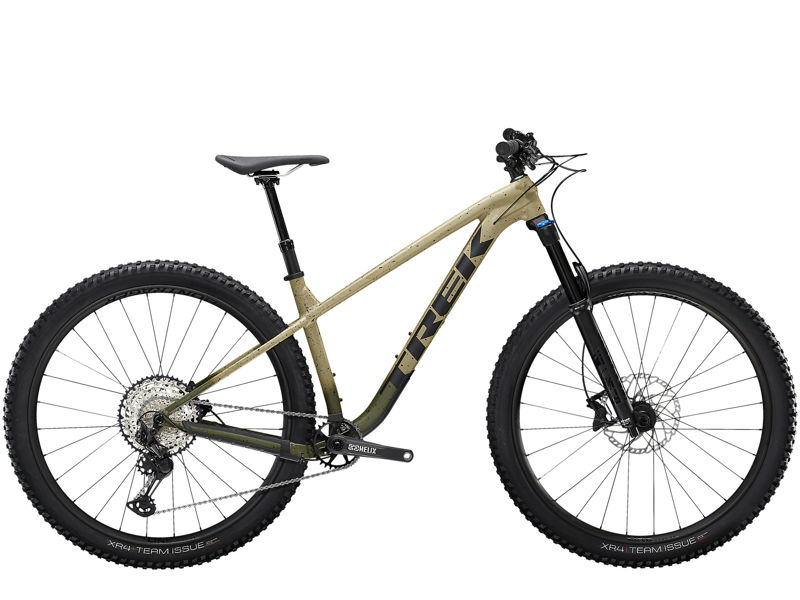

2023 Trek Roscoe geometry
Full frame geometry for the 2023 Trek Roscoe, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 626 | 415 | 73.1 | 65 | 90 | 586 | 360 | 741 | 61 | 430 | 1151 | 42 | 131 |
| M | 635 | 440 | 73.1 | 65 | 100 | 614 | 420 | 748 | 61 | 430 | 1181 | 42 | 131 |
| ML | 639 | 455 | 73.1 | 65 | 105 | 630 | 435 | 742 | 61 | 430 | 1198 | 42 | 131 |
| L | 644 | 470 | 73.1 | 65 | 110 | 646 | 450 | 755 | 61 | 430 | 1215 | 42 | 131 |
| XL | 666 | 495 | 73.1 | 65 | 135 | 677 | — | 765 | 61 | 430 | 1250 | 42 | 131 |
All measurements in millimetres unless marked (°) for angles.
