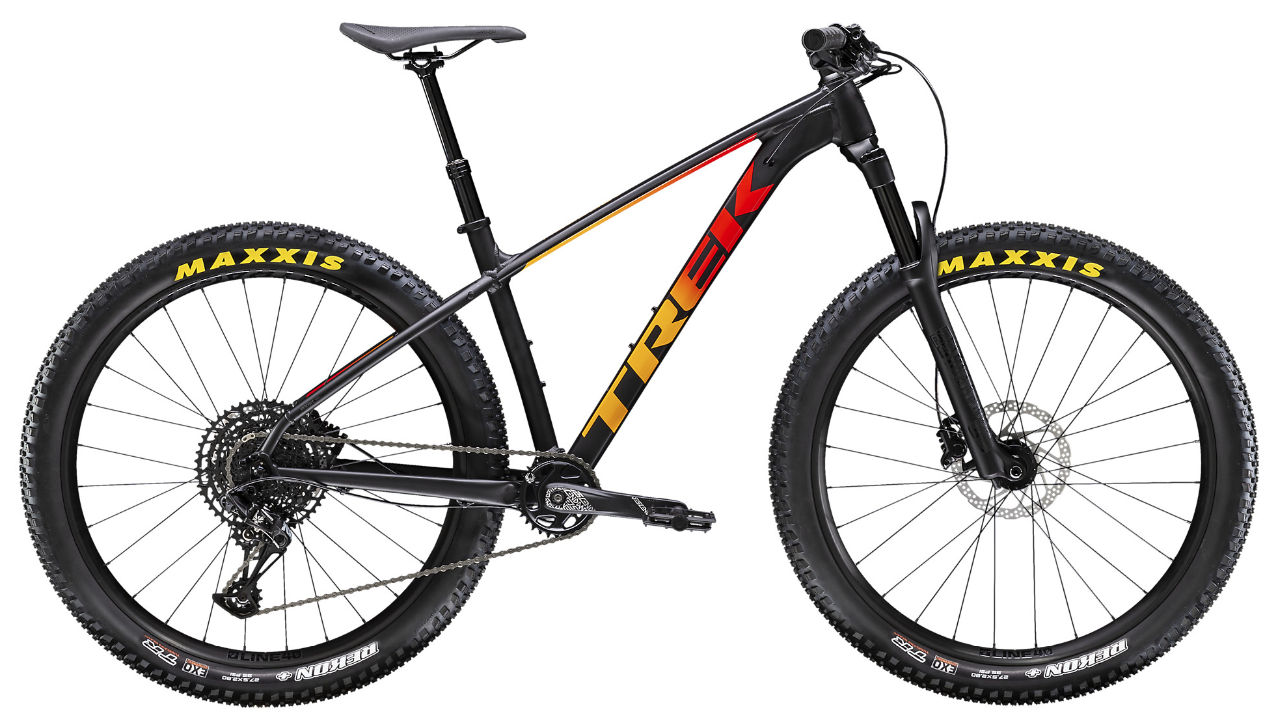

2019 Trek Roscoe MKII geometry
Full frame geometry for the 2019 Trek Roscoe MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS/13.5 | 605 | 351 | 71.1 | 67.1 | 90 | 558 | 343 | 731 | 50 | 626 | 438 | 1059 | 42 | 152 |
| M/17.5 | 614 | 394 | 70.7 | 67.2 | 90 | 609 | 419 | 751 | 41 | 675 | 438 | 1110 | 42 | 151 |
| S/15.5 | 614 | 364 | 71.2 | 67.2 | 90 | 574 | 368 | 754 | 40 | 646 | 438 | 1081 | 42 | 152 |
| ML/18.5 | 615 | 410 | 70.8 | 67.3 | 90 | 625 | 444 | 748 | 41 | 691 | 438 | 1126 | 42 | 151 |
| L/19.5 | 625 | 428 | 70.8 | 67.3 | 100 | 645 | 470 | 763 | 41 | 711 | 438 | 1146 | 42 | 151 |
| XL/21.5 | 644 | 442 | 70.9 | 67.4 | 120 | 666 | 521 | 760 | 42 | 733 | 438 | 1168 | 42 | 150 |
| XXL/23 | 644 | 457 | 70.9 | 67.4 | 120 | 680 | 559 | 815 | 42 | 747 | 438 | 1182 | 42 | 150 |
All measurements in millimetres unless marked (°) for angles.
