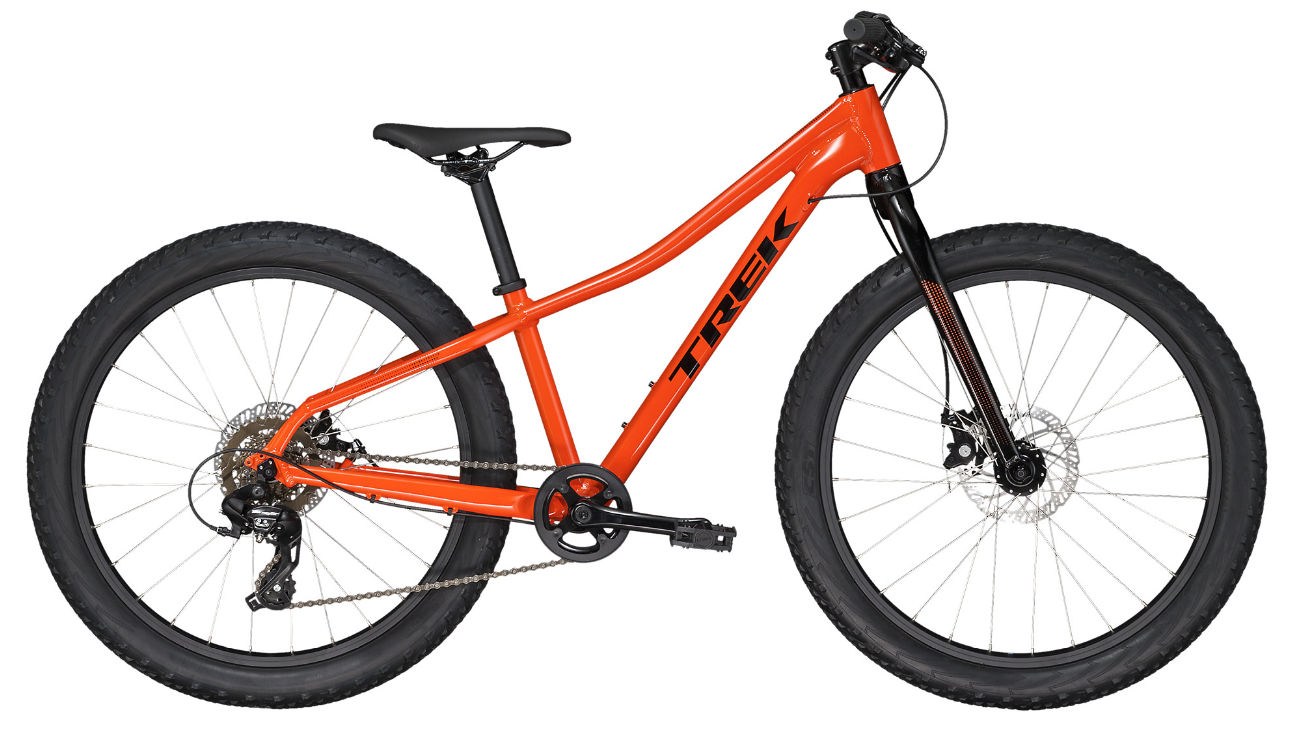

2019 Trek Roscoe 24 geometry
Full frame geometry for the 2019 Trek Roscoe 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kids 24 | 544 | 355 | 72 | 70 | 105 | 532 | 310 | 600 | 410 | 985 | 0 | 71 |
All measurements in millimetres unless marked (°) for angles.
