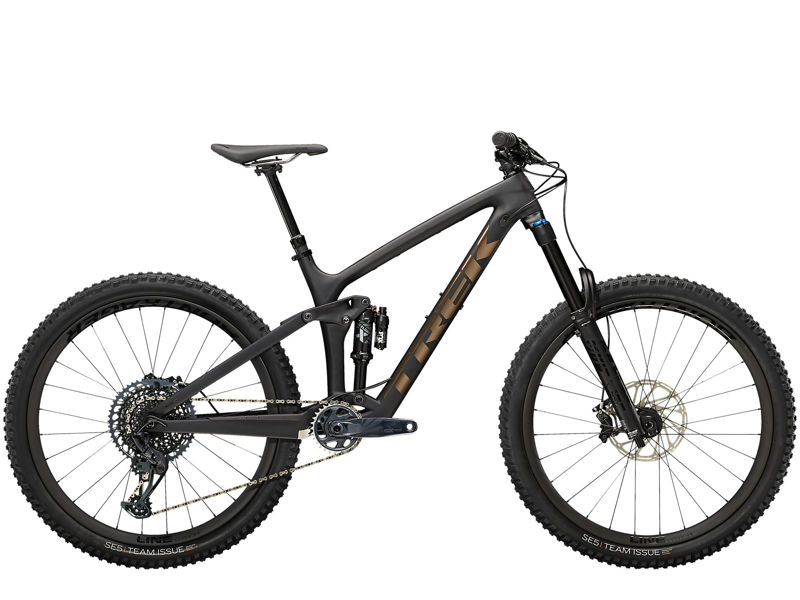

2022 Trek Remedy geometry
Full frame geometry for the 2022 Trek Remedy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 395 | 74.2 | 65.5 | 95 | 562 | 738 | 16 | 435 | 1140 | 46 | 115 |
| M | 592 | 420 | 74.2 | 65.6 | 95 | 588 | 766 | 16 | 435 | 1167 | 46 | 115 |
| ML | 596 | 435 | 74.2 | 65.6 | 105 | 604 | 76.8 | 16 | 435 | 1184 | 46 | 115 |
| L | 601 | 455 | 74.2 | 65.6 | 110 | 625 | 76.5 | 16 | 435 | 1206 | 46 | 115 |
| XL | 615 | 475 | 74.2 | 65.6 | 125 | 649 | 77.6 | 16 | 435 | 1232 | 46 | 115 |
All measurements in millimetres unless marked (°) for angles.
