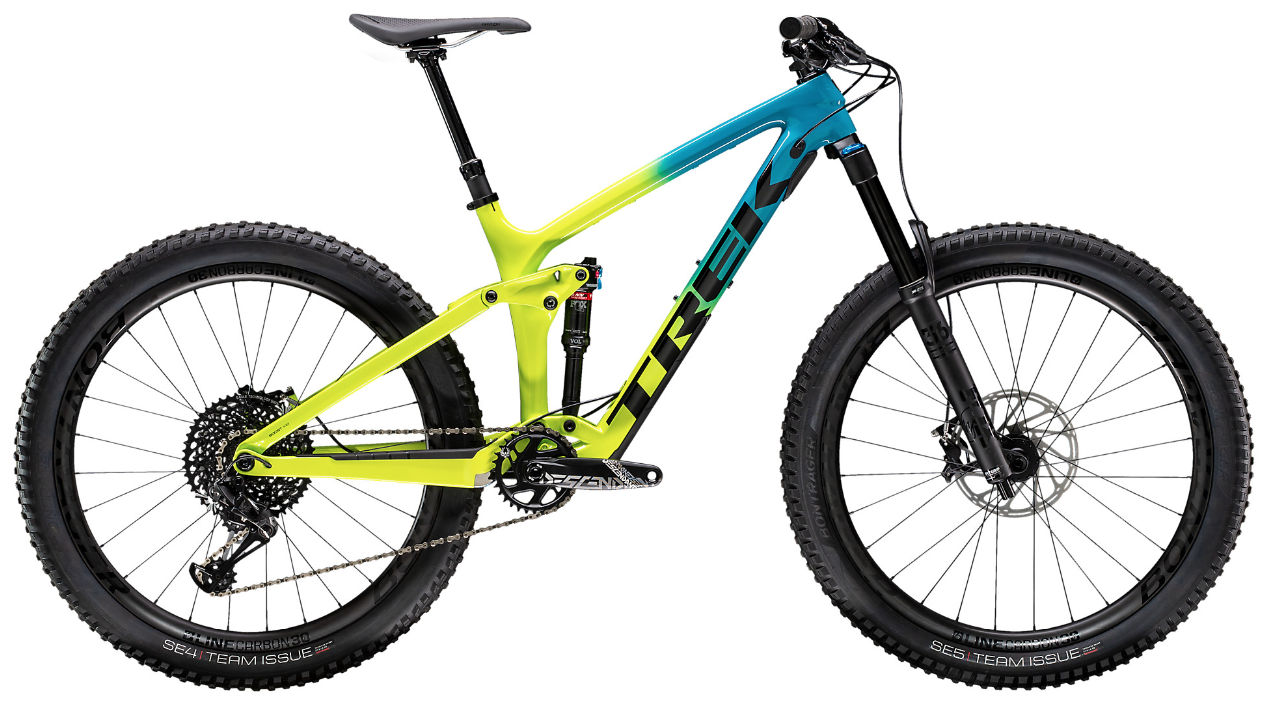

2019 Trek Remedy Carbon MKIII geometry
Full frame geometry for the 2019 Trek Remedy Carbon MKIII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-High | 583 | 401 | 74.7 | 66.1 | 95 | 560 | 394 | 743 | 94 | 722 | 433 | 1139 | 46 | 112 |
| S-Low | 587 | 395 | 74.2 | 65.5 | 95 | 562 | 394 | 738 | 16 | 705 | 435 | 1140 | 46 | 115 |
| M-High | 588 | 426 | 74.7 | 66.1 | 100 | 586 | 419 | 771 | 94 | 749 | 433 | 1166 | 46 | 112 |
| M-Low | 592 | 420 | 74.2 | 65.6 | 100 | 588 | 419 | 766 | 16 | 732 | 435 | 1167 | 46 | 115 |
| ML-High | 592 | 441 | 74.7 | 66.1 | 105 | 603 | 445 | 773 | 94 | 766 | 433 | 1183 | 46 | 112 |
| ML-Low | 596 | 435 | 74.2 | 65.6 | 105 | 604 | 445 | 768 | 16 | 749 | 435 | 1184 | 46 | 115 |
| L-High | 597 | 461 | 74.7 | 66.1 | 110 | 624 | 470 | 770 | 94 | 788 | 433 | 1205 | 46 | 112 |
| L-Low | 601 | 455 | 74.2 | 65.6 | 110 | 625 | 470 | 765 | 16 | 771 | 435 | 1206 | 46 | 115 |
| XL-High | 610 | 481 | 74.7 | 66.1 | 125 | 648 | 521 | 782 | 94 | 814 | 433 | 1231 | 46 | 112 |
| XL-Low | 615 | 475 | 74.2 | 65.6 | 125 | 649 | 521 | 776 | 16 | 797 | 435 | 1232 | 46 | 115 |
All measurements in millimetres unless marked (°) for angles.
