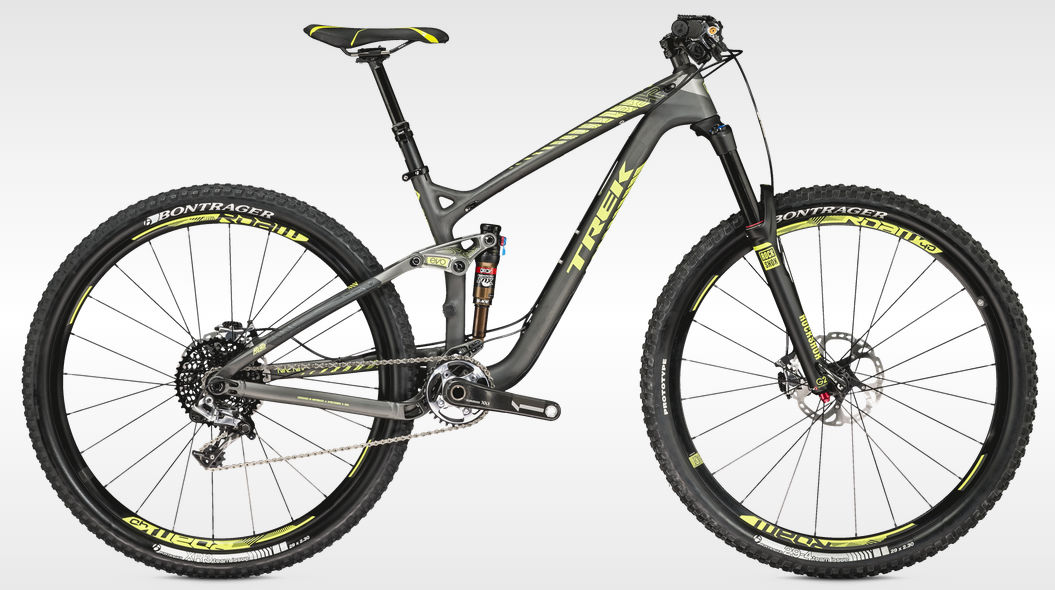

2015 Trek Remedy Carbon 29 MKI geometry

Name: 2015 Trek Remedy Carbon 29 MKI
Brand: Trek

Full frame geometry for the 2015 Trek Remedy Carbon 29 MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
15.5-High	600	393	69	68.2	100	544	394	779	20	684	443	1126	51	93
17.5-High	600	423	69	68.2	100	573	419	775	20	714	443	1156	51	93
18.5-High	604	439	69	68.2	105	591	445	753	20	732	443	1174	51	93
19.5-High	604	454	69	68.2	110	606	470	759	20	747	443	1189	51	93
15.5-Low	605	386	68	67.5	100	546	394	771	20	684	445	1128	51	98
17.5-Low	605	416	68	67.5	100	576	419	767	20	714	445	1158	51	98
18.5-Low	609	432	68	67.5	105	594	445	745	20	731	445	1175	51	98
19.5-Low	609	447	68	67.5	110	609	470	751	20	746	445	1190	51	98
21.5-High	613	472	69	68.2	125	628	521	775	20	769	443	1211	51	93
21.5-Low	619	465	68	67.5	125	631	521	766	20	768	445	1212	51	98

All measurements in millimetres unless marked (°) for angles.
