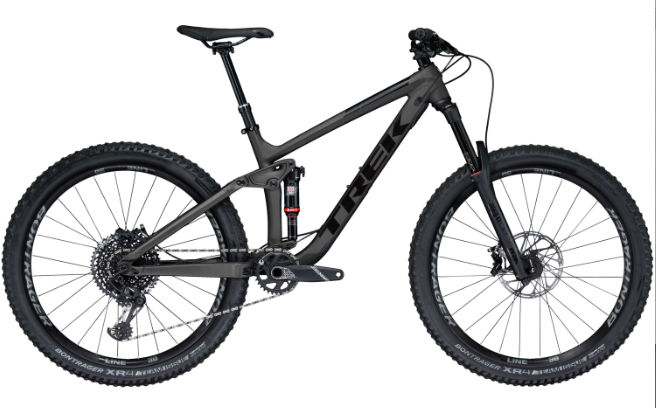

2018 Trek Remedy Alloy MKII geometry
Full frame geometry for the 2018 Trek Remedy Alloy MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 587 | 398 | 67.7 | 65.5 | 100 | 549 | 394 | 762 | 9 | 433 | 1135 | 111 |
| 17.5 | 587 | 428 | 67.7 | 65.5 | 100 | 579 | 419 | 756 | 9 | 433 | 1165 | 111 |
| 18.5 | 592 | 445 | 67.7 | 65.5 | 105 | 597 | 445 | 754 | 9 | 433 | 1184 | 111 |
| 19.5 | 596 | 459 | 67.7 | 65.5 | 110 | 613 | 470 | 750 | 9 | 433 | 1200 | 111 |
| 21.5 | 610 | 483 | 67.7 | 65.5 | 125 | 643 | 521 | 755 | 9 | 433 | 1230 | 111 |
All measurements in millimetres unless marked (°) for angles.
