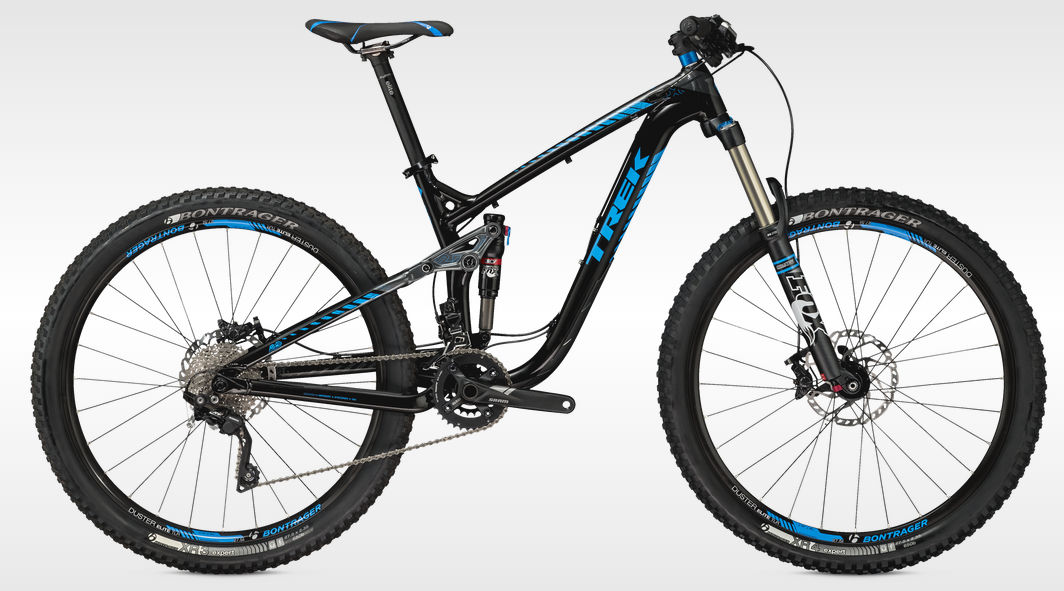

2015 Trek Remedy Alloy 27.5 MKI geometry

Name: 2015 Trek Remedy Alloy 27.5 MKI
Brand: Trek

Full frame geometry for the 2015 Trek Remedy Alloy 27.5 MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
15.5-High	589	373	68.2	68.2	100	546	394	779	7	664	433	1097	43	95
17.5-High	589	406	68.2	68.2	100	579	419	765	7	697	433	1130	43	95
15.5-Low	593	366	67.5	67.5	100	549	394	772	15	663	435	1098	43	100
18.5-High	594	424	68.1	68.1	105	598	445	751	7	716	433	1149	43	95
19.5-High	599	439	68.1	68.1	110	615	470	749	7	733	433	1166	43	95
19.5-Low	604	432	67.5	67.5	110	618	470	742	15	732	435	1167	43	100
21.5-High	613	461	68.1	68.1	125	643	508	746	7	760	433	1193	43	95
21.5-Low	618	455	67.5	67.5	125	646	508	739	15	761	435	1196	43	100
17.5-Low	694	394	67.5	67.5	100	582	419	758	15	696	435	1131	43	100
18.5-Low	699	417	67.5	67.5	105	601	445	744	15	716	435	1151	43	100

All measurements in millimetres unless marked (°) for angles.
