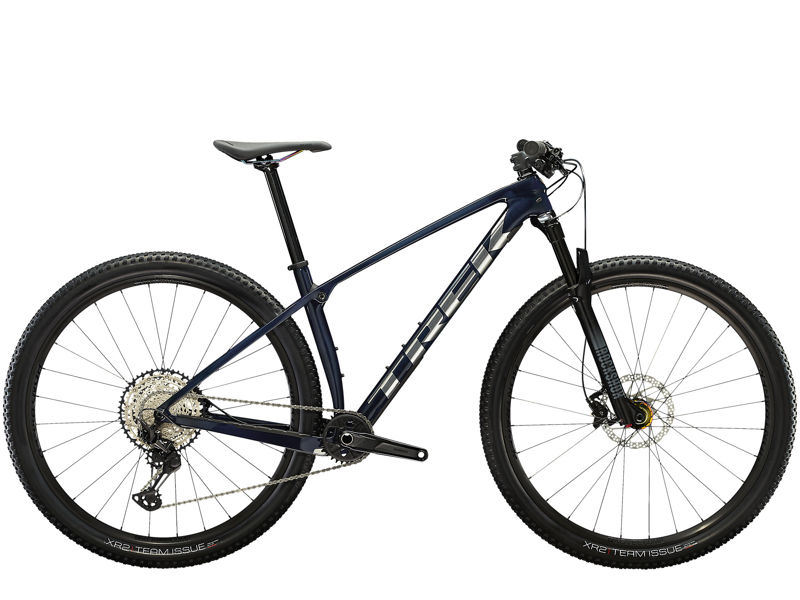

2023 Trek Procaliber geometry
Full frame geometry for the 2023 Trek Procaliber, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 600 | 450 | 72.8 | 68.8 | 90 | 625 | 784 | 60 | 432 | 1133 | 42 | 100 |
| M | 600 | 420 | 72.8 | 68.8 | 90 | 595 | 755 | 60 | 432 | 1103 | 42 | 100 |
| ML | 600 | 435 | 72.8 | 68.8 | 90 | 610 | 765 | 60 | 432 | 1118 | 42 | 100 |
| S | 600 | 395 | 72.8 | 68.8 | 90 | 570 | 715 | 60 | 432 | 1078 | 42 | 100 |
| XL | 614 | 480 | 72.8 | 68.8 | 105 | 659 | 814 | 60 | 432 | 1168 | 42 | 100 |
| XXL | 623 | 500 | 72.8 | 68.8 | 120 | 683 | 841 | 60 | 432 | 1194 | 42 | 100 |
All measurements in millimetres unless marked (°) for angles.
