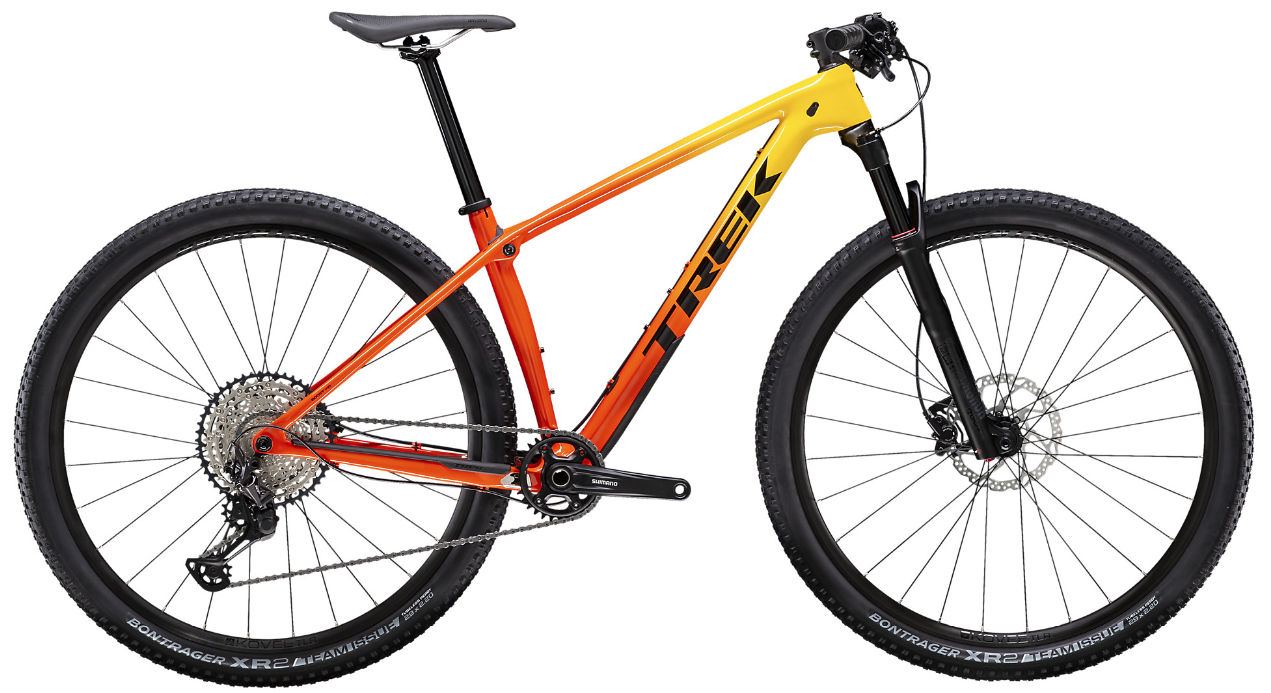

2019 Trek Procaliber Carbon MKII geometry
Full frame geometry for the 2019 Trek Procaliber Carbon MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 563 | 382 | 73 | 69.3 | 100 | 558 | 368 | 753 | 48 | 633 | 425 | 1053 | 44 | 85 |
| M | 595 | 412 | 72.5 | 69.5 | 90 | 599 | 419 | 750 | 58 | 669 | 435 | 1098 | 51 | 83 |
| ML | 595 | 427 | 72.3 | 69.5 | 90 | 617 | 444 | 764 | 58 | 684 | 435 | 1113 | 51 | 83 |
| L | 604 | 442 | 72 | 69.5 | 100 | 638 | 470 | 778 | 58 | 703 | 435 | 1132 | 51 | 83 |
| XL | 628 | 457 | 72 | 69.5 | 120 | 659 | 521 | 816 | 58 | 725 | 435 | 1154 | 51 | 83 |
| XXL | 632 | 471 | 72 | 69.6 | 120 | 673 | 559 | 847 | 58 | 737 | 435 | 1166 | 51 | 83 |
All measurements in millimetres unless marked (°) for angles.
