2017 Trek · GP

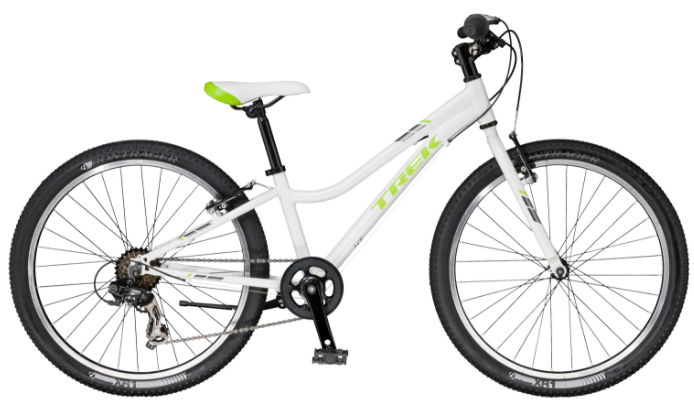

2017 Trek Precaliber Girls 24 MKI geometry
Full frame geometry for the 2017 Trek Precaliber Girls 24 MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 487 | 371 | 72 | 70 | 105 | 529 | 290 | 612 | 38 | 989 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
