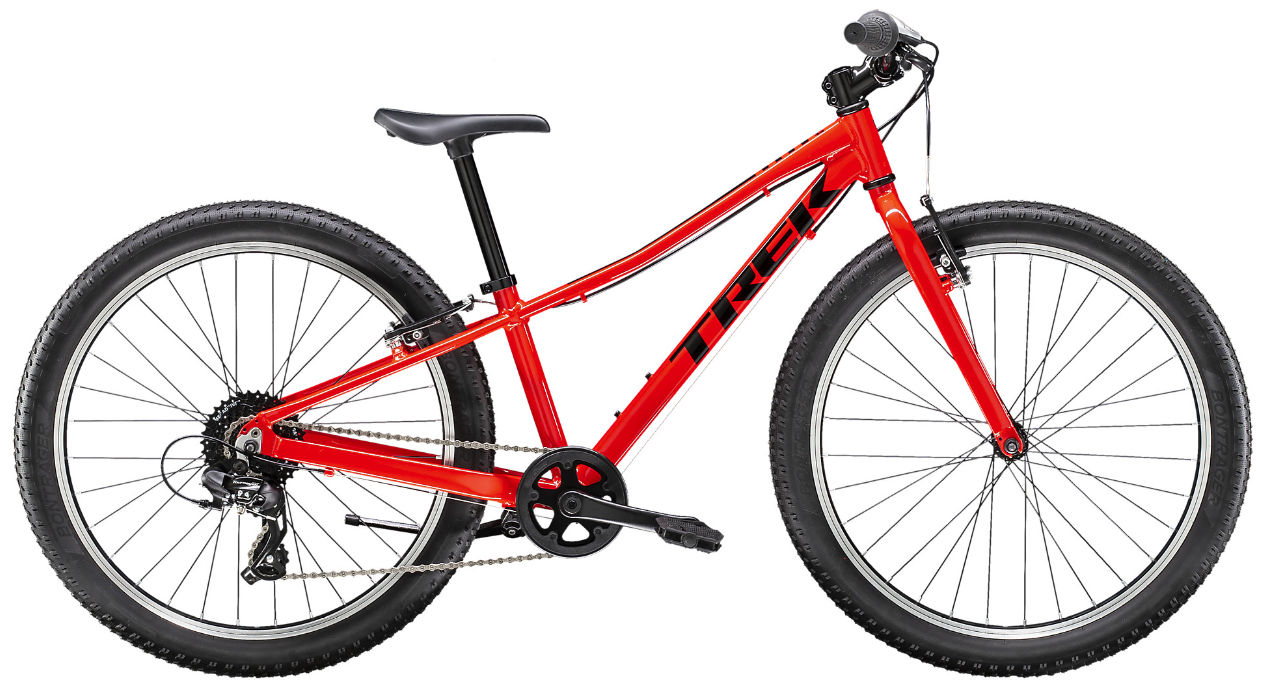

2019 Trek Precaliber Boys 24 MKII geometry
Full frame geometry for the 2019 Trek Precaliber Boys 24 MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| One | 500 | 367 | 72 | 70 | 90 | 529 | 300 | 564 | 73 | 575 | 420 | 984 | 0 | 68 |
All measurements in millimetres unless marked (°) for angles.
