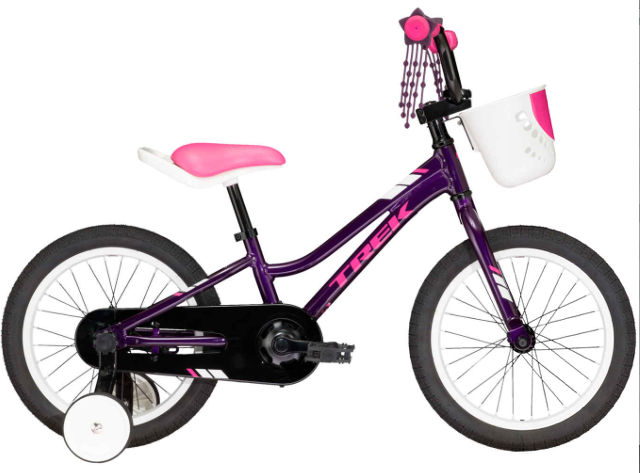

2018 Trek Precaliber 16 Girls geometry
Full frame geometry for the 2018 Trek Precaliber 16 Girls, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 342 | 275 | 70 | 70 | 85 | 400 | 205 | 389 | 10 | 722 | 52 |
All measurements in millimetres unless marked (°) for angles.
