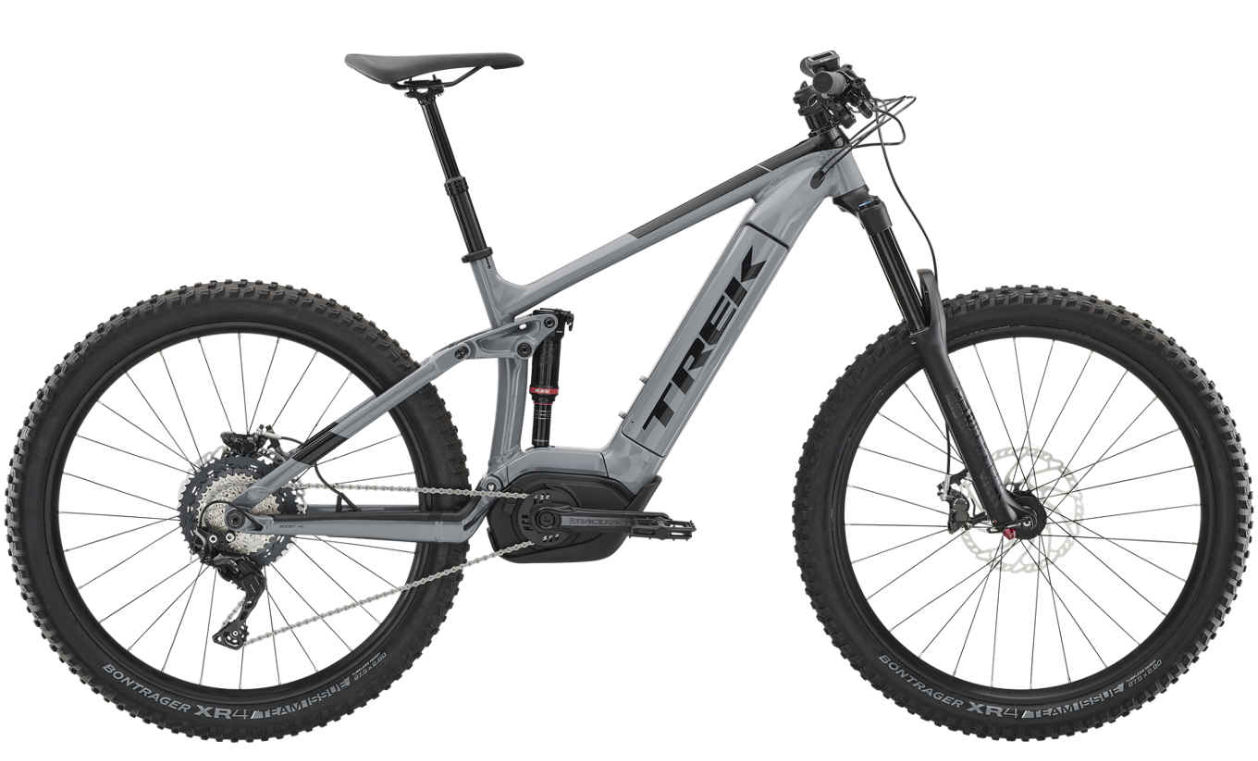

2018 Trek Powerfly LT geometry
Full frame geometry for the 2018 Trek Powerfly LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15.5 | 598 | 391 | 71.5 | 66 | 100 | 570 | 368 | 785 | 6 | 474 | 1185 | 51 | 103 |
| 17.5 | 599 | 421 | 71.5 | 66 | 100 | 600 | 419 | 776 | 6 | 474 | 1215 | 51 | 103 |
| 18.5 | 603 | 440 | 71.5 | 66 | 105 | 620 | 445 | 765 | 6 | 474 | 1235 | 51 | 103 |
| 19.5 | 608 | 453 | 71.5 | 66 | 110 | 634 | 470 | 763 | 6 | 474 | 1250 | 51 | 103 |
| 21.5 | 621 | 476 | 71.5 | 66 | 125 | 662 | 521 | 772 | 6 | 474 | 1280 | 51 | 103 |
All measurements in millimetres unless marked (°) for angles.
