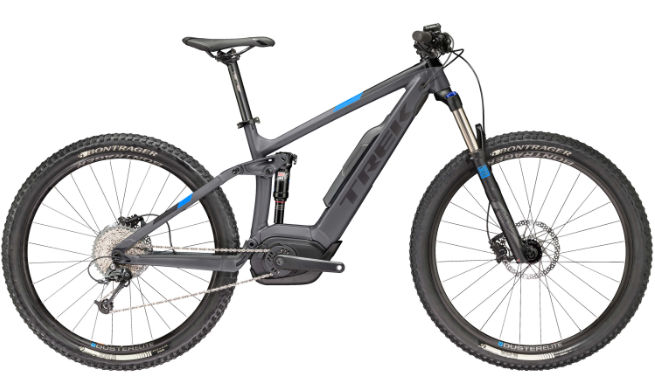

2018 Trek Powerfly 5 FS geometry
Full frame geometry for the 2018 Trek Powerfly 5 FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 17.5 | 588 | 442 | 72 | 67.4 | 100 | 600 | 419 | 741 | 24 | 474 | 1207 | 91 |
| 15.5 | 589 | 399 | 72 | 67.4 | 100 | 556 | 368 | 717 | 24 | 474 | 1176 | 91 |
| 18.5 | 592 | 461 | 72 | 67.4 | 105 | 620 | 445 | 766 | 24 | 474 | 1227 | 91 |
| 19.5 | 592 | 473 | 72 | 67.4 | 110 | 634 | 470 | 791 | 24 | 474 | 1242 | 91 |
| 21.5 | 609 | 497 | 72 | 67.4 | 125 | 662 | 521 | 840 | 24 | 474 | 1272 | 91 |
All measurements in millimetres unless marked (°) for angles.
