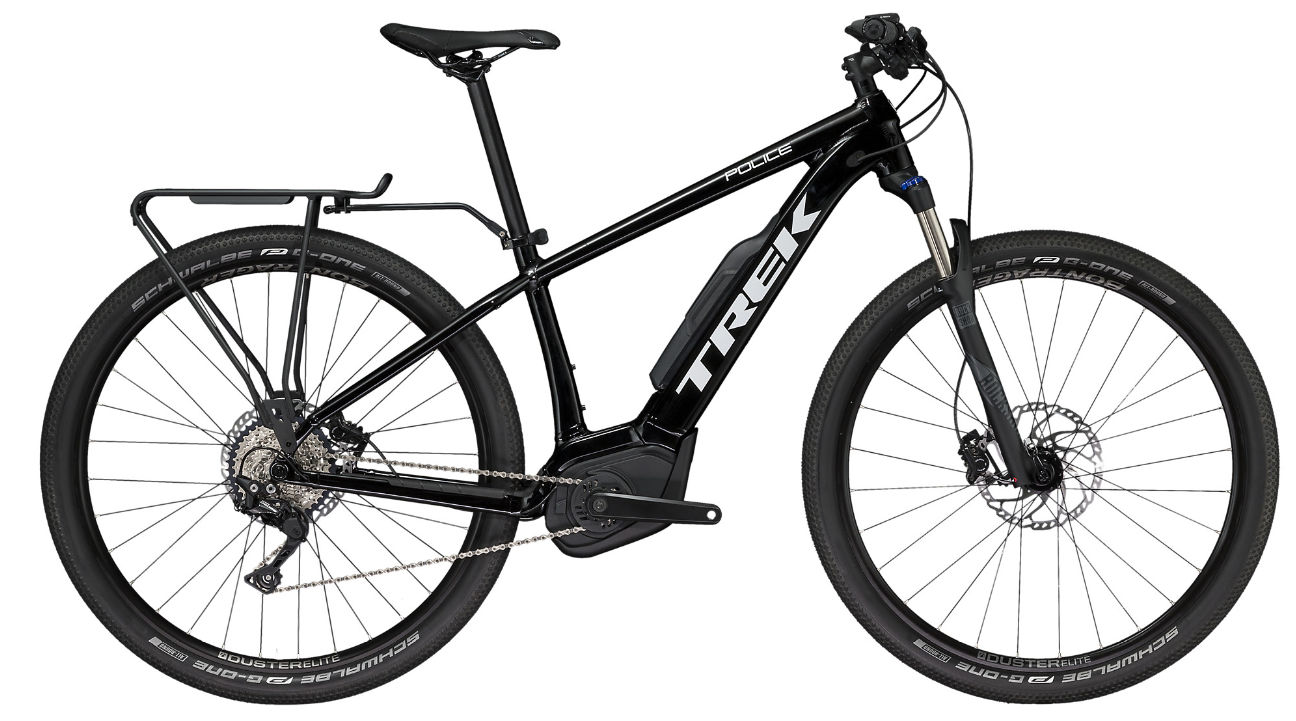

2019 Trek Police Electric geometry
Full frame geometry for the 2019 Trek Police Electric, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 620 | 413 | 73.6 | 69.6 | 120 | 595 | 419 | 780 | 54 | 680 | 485 | 1160 | 51 | 83 |
| S | 620 | 393 | 73.6 | 69.6 | 120 | 575 | 394 | 782 | 54 | 660 | 485 | 1140 | 51 | 83 |
| L | 638 | 448 | 73.6 | 69.6 | 140 | 636 | 470 | 785 | 54 | 721 | 485 | 1201 | 51 | 83 |
| XL | 656 | 473 | 73.6 | 69.6 | 160 | 667 | 521 | 818 | 54 | 754 | 485 | 1234 | 51 | 83 |
All measurements in millimetres unless marked (°) for angles.
