2018 Trek · USDW

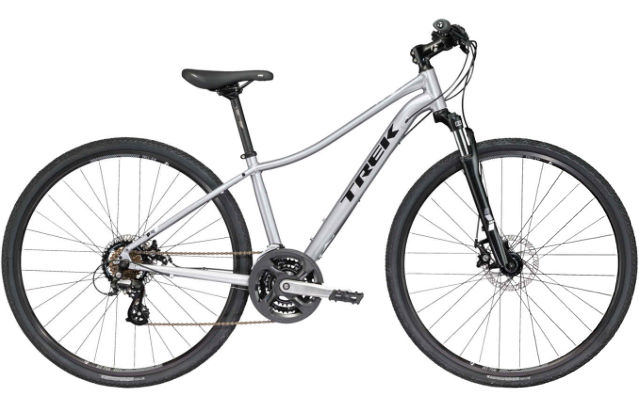

2018 Trek Neko 1 Womens geometry
Full frame geometry for the 2018 Trek Neko 1 Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 593 | 381 | 74.5 | 70 | 114 | 550 | 338 | 694 | 60 | 455 | 1070 | 89 |
| 16 | 595 | 390 | 74 | 70.5 | 114 | 560 | 382 | 716 | 60 | 455 | 1070 | 85 |
| 18 | 606 | 396 | 73.5 | 71 | 124 | 575 | 433 | 745 | 60 | 455 | 1075 | 82 |
All measurements in millimetres unless marked (°) for angles.
