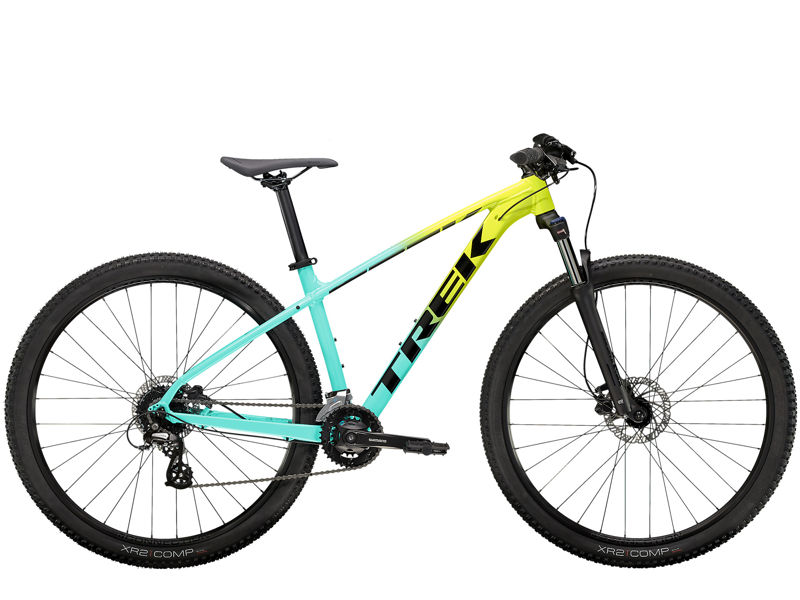

2023 Trek Marlin geometry
Full frame geometry for the 2023 Trek Marlin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 565 | 376 | 73.5 | 69.3 | 90 | 544 | 343 | 658 | 58 | 438 | 1049 | 42 | 88 |
| XXS | 570 | 369 | 72.8 | 68.6 | 90 | 546 | 343 | 657 | 52 | 438 | 1052 | 42 | 89 |
| S | 574 | 385 | 73.5 | 69.3 | 90 | 555 | 368 | 686 | 48 | 438 | 1066 | 42 | 88 |
| M | 602 | 418 | 71.9 | 69.5 | 90 | 602 | 419 | 748 | 58 | 438 | 1100 | 42 | 93 |
| ML | 602 | 434 | 71.9 | 69.5 | 90 | 618 | 444 | 758 | 58 | 438 | 1116 | 42 | 93 |
| L | 611 | 451 | 71.9 | 69.5 | 100 | 638 | 470 | 757 | 58 | 438 | 1137 | 42 | 93 |
| XL | 630 | 466 | 71.9 | 69.5 | 120 | 659 | 521 | 769 | 58 | 438 | 1159 | 42 | 93 |
| XXL | 630 | 480 | 71.9 | 69.5 | 120 | 673 | 559 | 804 | 58 | 438 | 1173 | 42 | 93 |
All measurements in millimetres unless marked (°) for angles.
