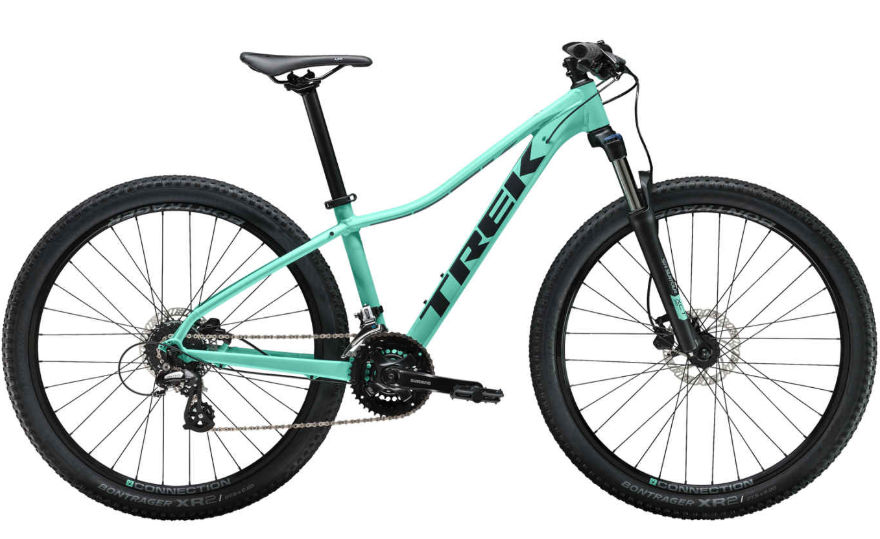

2018 Trek Marlin MKII Womens geometry
Full frame geometry for the 2018 Trek Marlin MKII Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 565 | 376 | 73.5 | 69.5 | 90 | 543 | 343 | 705 | 58 | 438 | 1049 | 44 | 85 |
| 15.5 | 574 | 385 | 73.5 | 69.5 | 90 | 555 | 368 | 728 | 48 | 438 | 1066 | 44 | 85 |
| 17.5 | 598 | 418 | 73.5 | 69.5 | 90 | 595 | 419 | 743 | 58 | 438 | 1109 | 51 | 83 |
| 18.5 | 598 | 434 | 73.5 | 69.5 | 90 | 611 | 444 | 750 | 58 | 438 | 1125 | 51 | 83 |
All measurements in millimetres unless marked (°) for angles.
