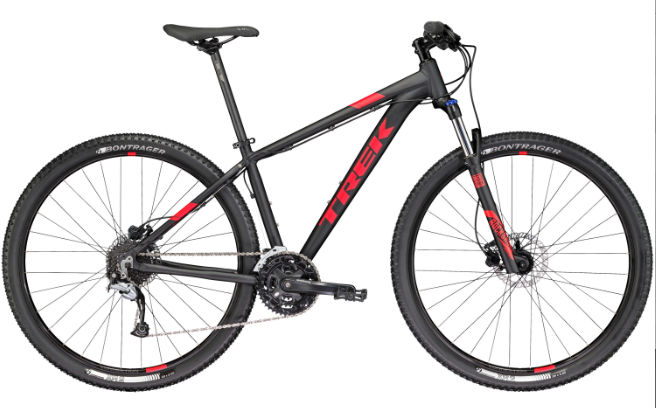

2015 Trek Marlin MKI geometry
Full frame geometry for the 2015 Trek Marlin MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.5 | 565 | 352 | 73 | 69 | 100 | 525 | 343 | 660 | 48 | 600 | 438 | 1033 | 44 | 89 |
| 15.5 | 585 | 381 | 73 | 69.3 | 100 | 560 | 394 | 745 | 48 | 632 | 438 | 1066 | 44 | 87 |
| 17.5 | 600 | 413 | 72.5 | 69.3 | 100 | 602 | 419 | 765 | 53 | 676 | 445 | 1116 | 51 | 85 |
| 18.5 | 601 | 428 | 72.3 | 69.6 | 100 | 620 | 444 | 777 | 53 | 688 | 445 | 1128 | 51 | 83 |
| 19.5 | 601 | 444 | 72 | 69.6 | 100 | 639 | 470 | 789 | 53 | 704 | 445 | 1144 | 51 | 83 |
| 21.5 | 620 | 458 | 72 | 69.6 | 120 | 659 | 521 | 825 | 53 | 725 | 445 | 1165 | 51 | 83 |
| 23 | 620 | 472 | 72 | 69.6 | 120 | 673 | 559 | 848 | 53 | 739 | 445 | 1179 | 51 | 83 |
All measurements in millimetres unless marked (°) for angles.
