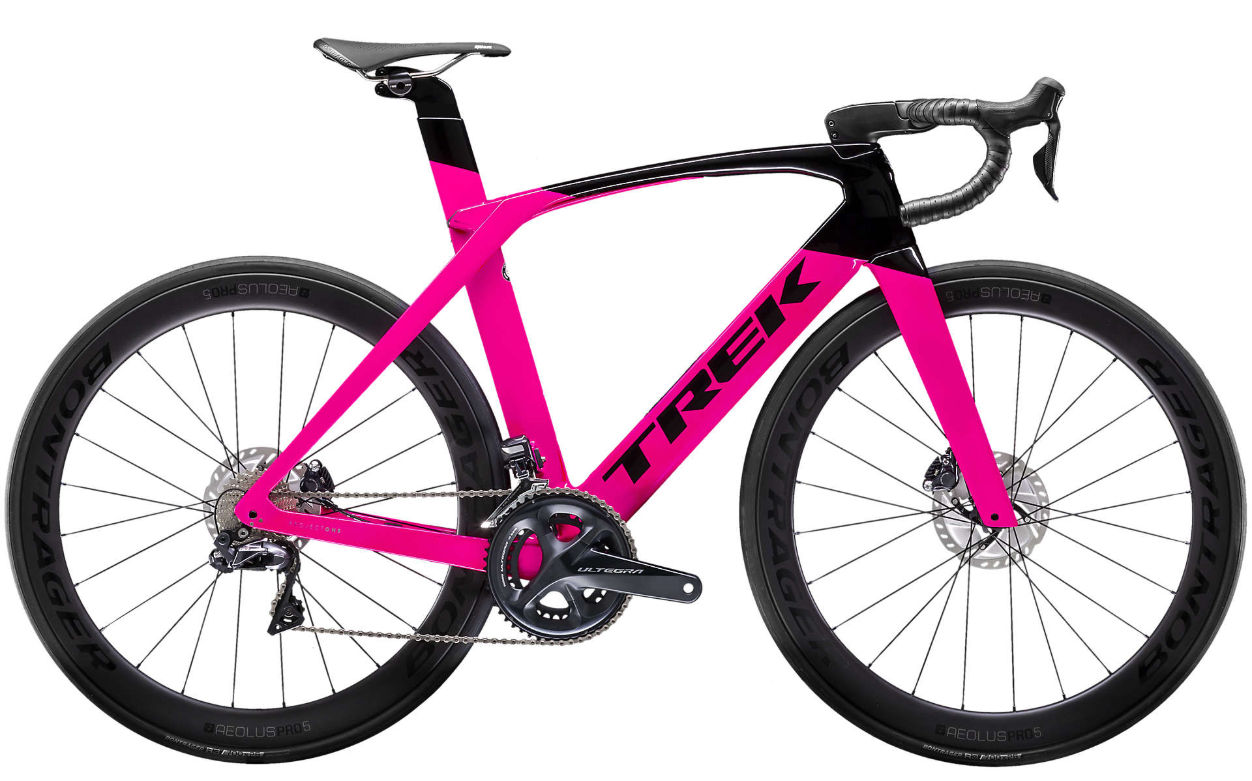

2019 Trek Madone SLR Disc Womens geometry
Full frame geometry for the 2019 Trek Madone SLR Disc Womens, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 521 | 378 | 74.6 | 72.1 | 111 | 521 | 711 | 72 | 410 | 974 | 45 | 62 |
| 52 | 533 | 383 | 74.2 | 72.8 | 121 | 534 | 732 | 72 | 410 | 977 | 45 | 58 |
| 54 | 541 | 386 | 73.7 | 73 | 131 | 543 | 744 | 70 | 410 | 981 | 45 | 56 |
| 56 | 563 | 391 | 73.3 | 73.5 | 151 | 559 | 768 | 70 | 410 | 983 | 40 | 58 |
All measurements in millimetres unless marked (°) for angles.
