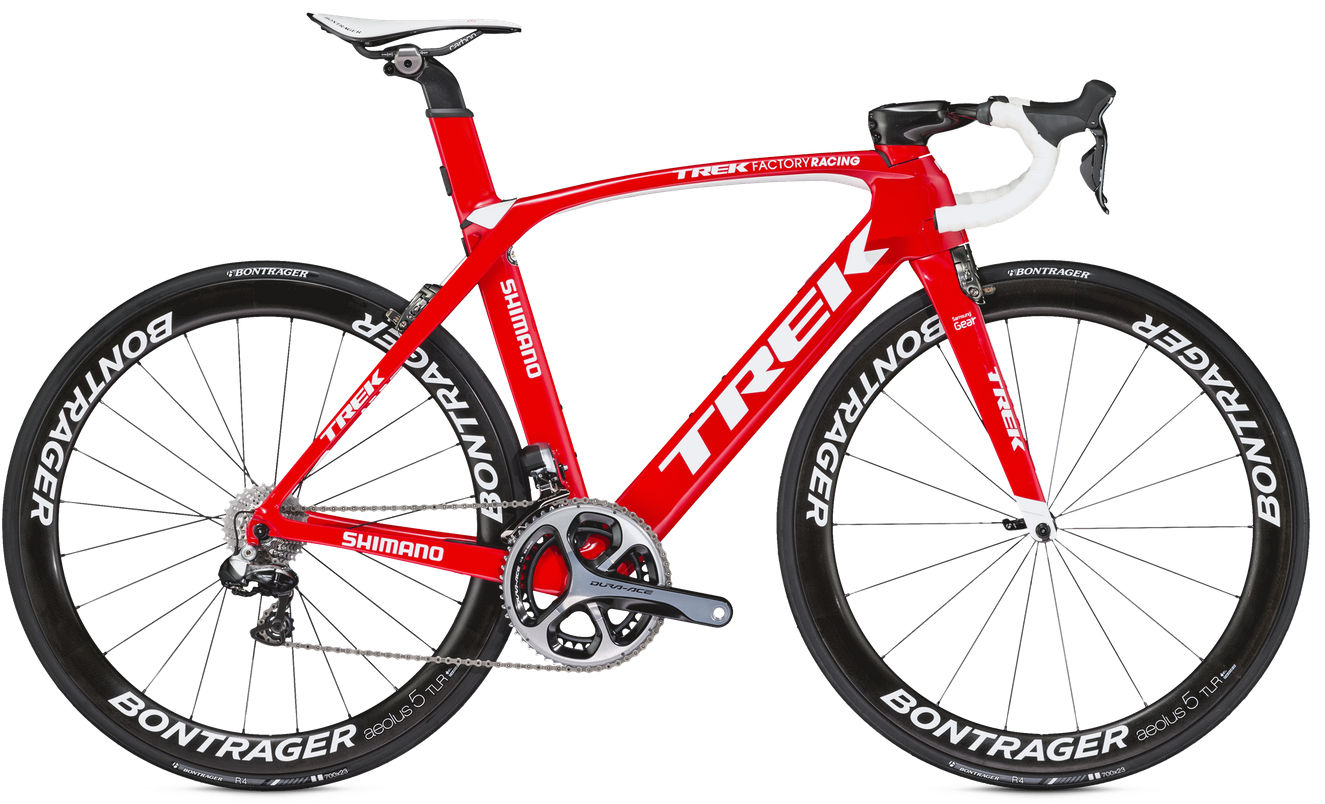

2016 Trek Madone Aero H1 geometry
Full frame geometry for the 2016 Trek Madone Aero H1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 506 | 383 | 74.6 | 72.1 | 100 | 522 | 453 | 696 | 72 | 575 | 410 | 974 | 45 | 61 |
| 52 | 518 | 388 | 74.2 | 72.8 | 110 | 535 | 482 | 720 | 72 | 578 | 410 | 977 | 45 | 57 |
| 54 | 526 | 390 | 73.7 | 73 | 120 | 544 | 496 | 733 | 70 | 581 | 410 | 981 | 45 | 56 |
| 56 | 549 | 395 | 73.3 | 73.5 | 140 | 560 | 525 | 758 | 70 | 583 | 410 | 983 | 40 | 58 |
| 58 | 567 | 400 | 73 | 73.8 | 160 | 573 | 553 | 783 | 68 | 591 | 411 | 992 | 40 | 56 |
| 60 | 586 | 404 | 72.8 | 73.9 | 180 | 586 | 573 | 801 | 68 | 600 | 411 | 1001 | 40 | 56 |
| 62 | 606 | 407 | 72.5 | 73.9 | 200 | 598 | 593 | 820 | 68 | 607 | 412 | 1010 | 40 | 55 |
All measurements in millimetres unless marked (°) for angles.
