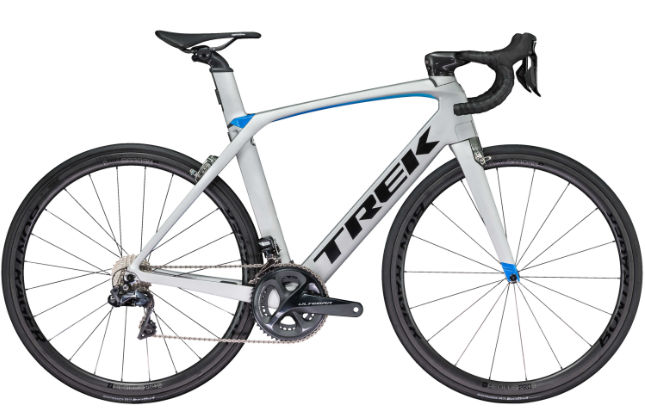

2018 Trek Madone 9.5 geometry
Full frame geometry for the 2018 Trek Madone 9.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 552 | 379 | 74.2 | 72.8 | 140 | 532 | 493 | 729 | 72 | 410 | 977 | 57 |
| 54 | 560 | 381 | 73.7 | 73 | 155 | 543 | 506 | 742 | 70 | 410 | 981 | 56 |
| 56 | 582 | 387 | 73.3 | 73.5 | 170 | 560 | 533 | 767 | 70 | 410 | 983 | 58 |
| 58 | 601 | 391 | 73 | 73.8 | 190 | 573 | 553 | 786 | 68 | 411 | 992 | 56 |
| 60 | 620 | 395 | 72.8 | 73.9 | 210 | 586 | 573 | 804 | 68 | 411 | 1001 | 56 |
All measurements in millimetres unless marked (°) for angles.
