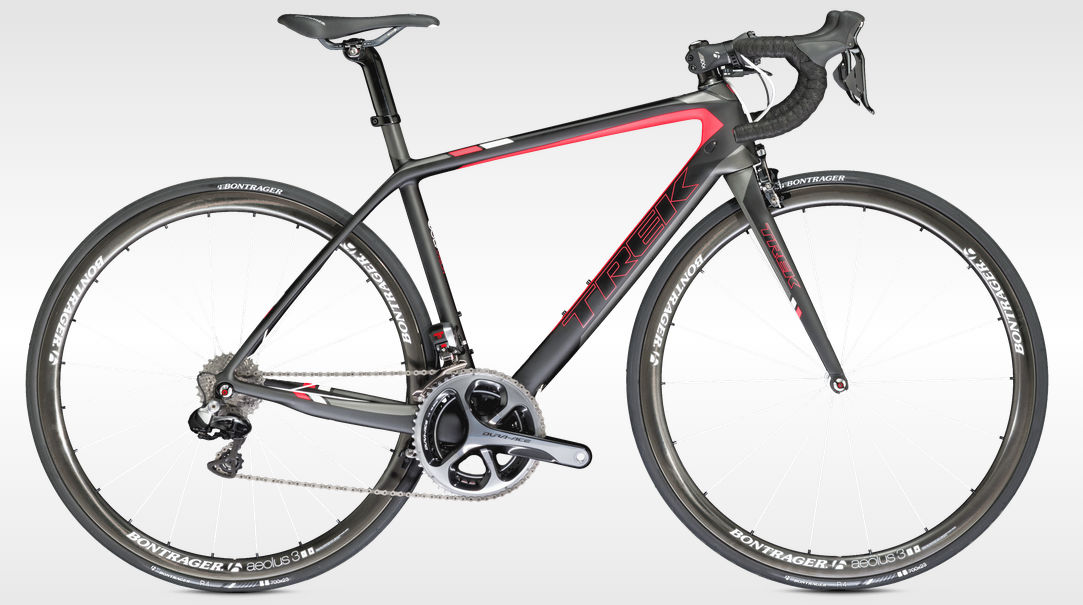

2015 Trek Madone 7-Series WSD geometry
Full frame geometry for the 2015 Trek Madone 7-Series WSD, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 535 | 374 | 74.6 | 72.1 | 130 | 521 | 476 | 733 | 72 | 407 | 971 | 45 | 62 |
| 52 | 547 | 379 | 74.2 | 72.8 | 140 | 534 | 493 | 747 | 72 | 407 | 973 | 45 | 58 |
| 54 | 555 | 381 | 73.7 | 73 | 150 | 543 | 506 | 758 | 70 | 407 | 978 | 45 | 56 |
| 56 | 577 | 387 | 73.3 | 73.5 | 170 | 560 | 533 | 781 | 70 | 407 | 980 | 40 | 58 |
All measurements in millimetres unless marked (°) for angles.
